Introduction

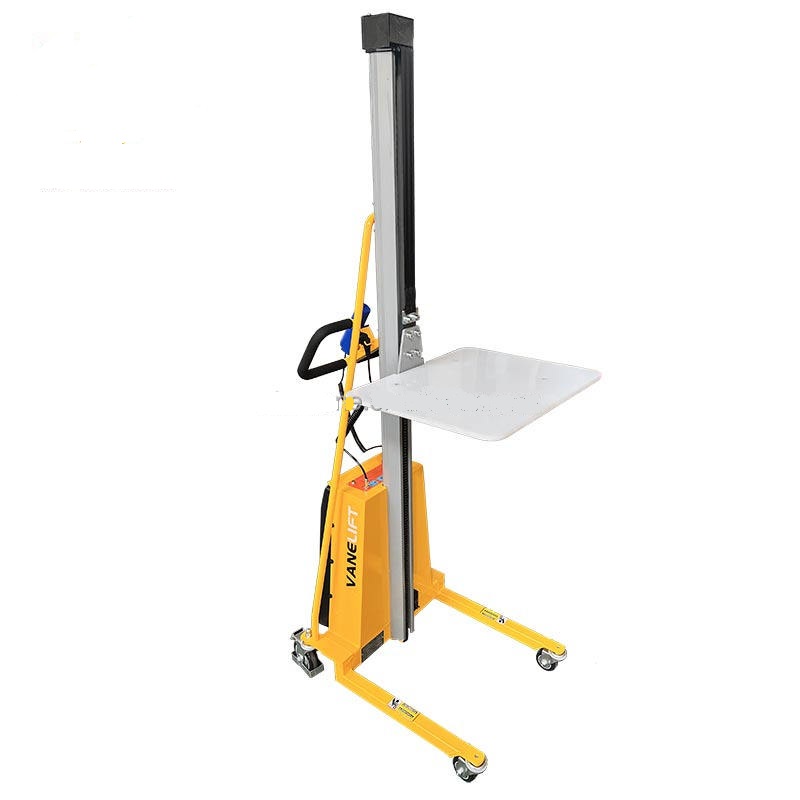

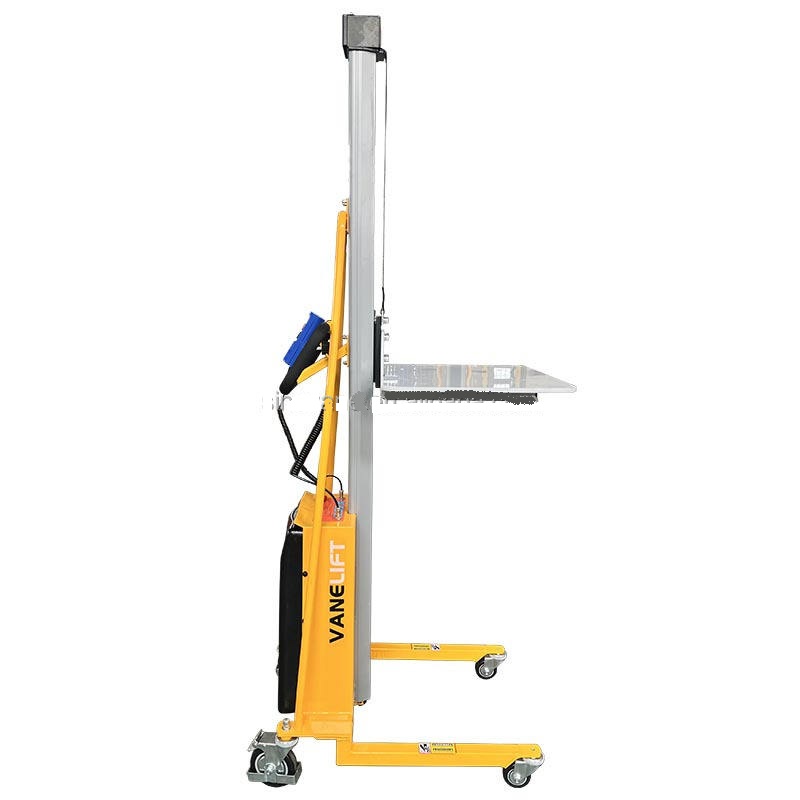

The Mini Electric Platform Lift & Battery Stacker is a highly maneuverable, electrically powered lifting device. Perfectly suited for light-duty material handling, cargo sorting, and order picking, this versatile work positioner helps eliminate manual strain when lifting boxes, components, or tools to ergonomic working heights.
Key Features
-
Efficient Battery Operation: Smooth motorized lift controls elevate materials reliably, keeping labor demands low.
-
Ultra-Compact Footprint: Small dimensions allow it to negotiate narrow warehouse aisles, tight retail corridors, and confined workspaces with ease.
-

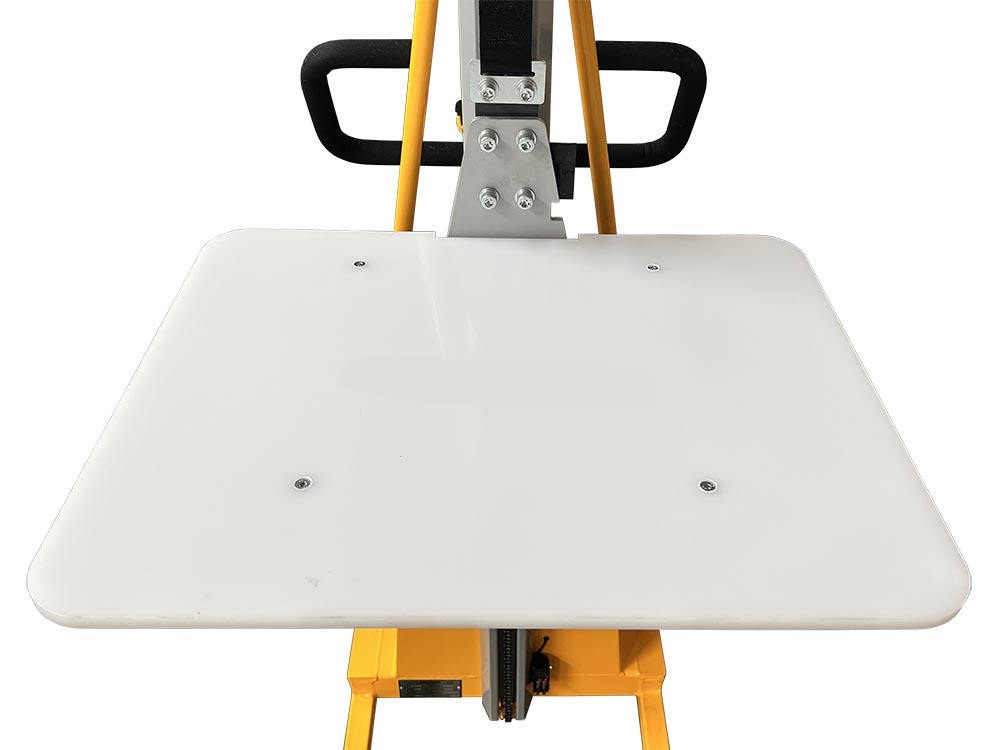

Sturdy Platform Surface: Comes standard with a balanced non-slip platform, ideal for handling irregular items, small cargo boxes, or tooling sheets.
-
Ergonomic Mobility: Designed as a nimble push-around stacker with robust steering wheels to make moving and precision positioning effortless.
Technical Specifications
The series is available in several models tailored to your specific lifting heights and load capacities:
| Model | Load Capacity (kg) | Max. Lift Height (mm) | Min. Height (mm) | Platform Size (mm) | Battery Configuration | Overall Dimensions (mm) |
| E100 | 100 | 1700 / 2000 | 130 | 475 × 605 | $2 \times (12\text{V} / 12\text{Ah})$ | 765 x 605 x 2010 (2310) |
| E150 | 150 | 1500 / 1800 | 130 | 475 × 605 | $2 \times (12\text{V} / 12\text{Ah})$ | 765 x 605 x 1810 (2110) |
| E200 | 200 | 1500 / 1800 | 130 | 475 × 605 | $2 \times (12\text{V} / 20\text{Ah})$ | 803 x 605 x 1810 (2110) |
| E250 | 250 | 1500 / 1800 | 130 | 475 × 605 | $2 \times (12\text{V} / 20\text{Ah})$ | 803 x 605 x 1810 (2110) |
| E300 | 300 | 1500 / 1800 | 130 | 475 × 605 | $2 \times (12\text{V} / 20\text{Ah})$ | 870 x 605 x 1920 (2220) |
-
Leg Height: 80mm / 123mm
-
Load Wheels: $\phi$50mm / $\phi$75mm
-
Steering Wheels: $\phi$125mm
-
Warranty: 1 Year
Applications
-
Warehouses & Logistics: Speeds up inventory management, stock replenishment, and order picking from high racking tiers.
-
Retail Backrooms & Supermarkets: Safe and efficient for setting up displays, handling bulky goods, and loading shelves.
-
Offices & Libraries: Excellent for moving heavy archive boxes, file binders, or media crates without manual straining.
-
Manufacturing Workshops: Serves as a versatile mobile workstation, bringing heavy components up to comfortable assembly table heights.
