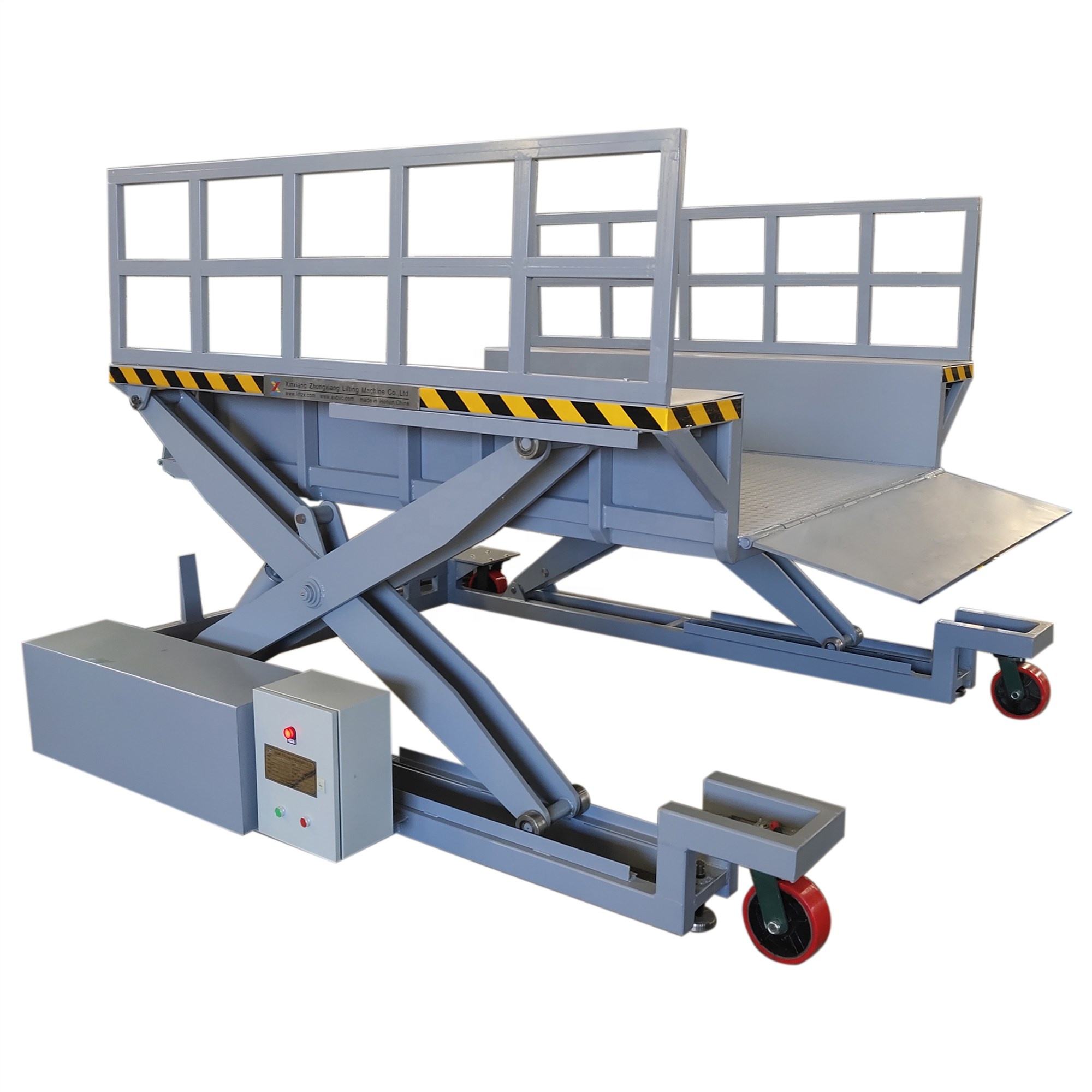

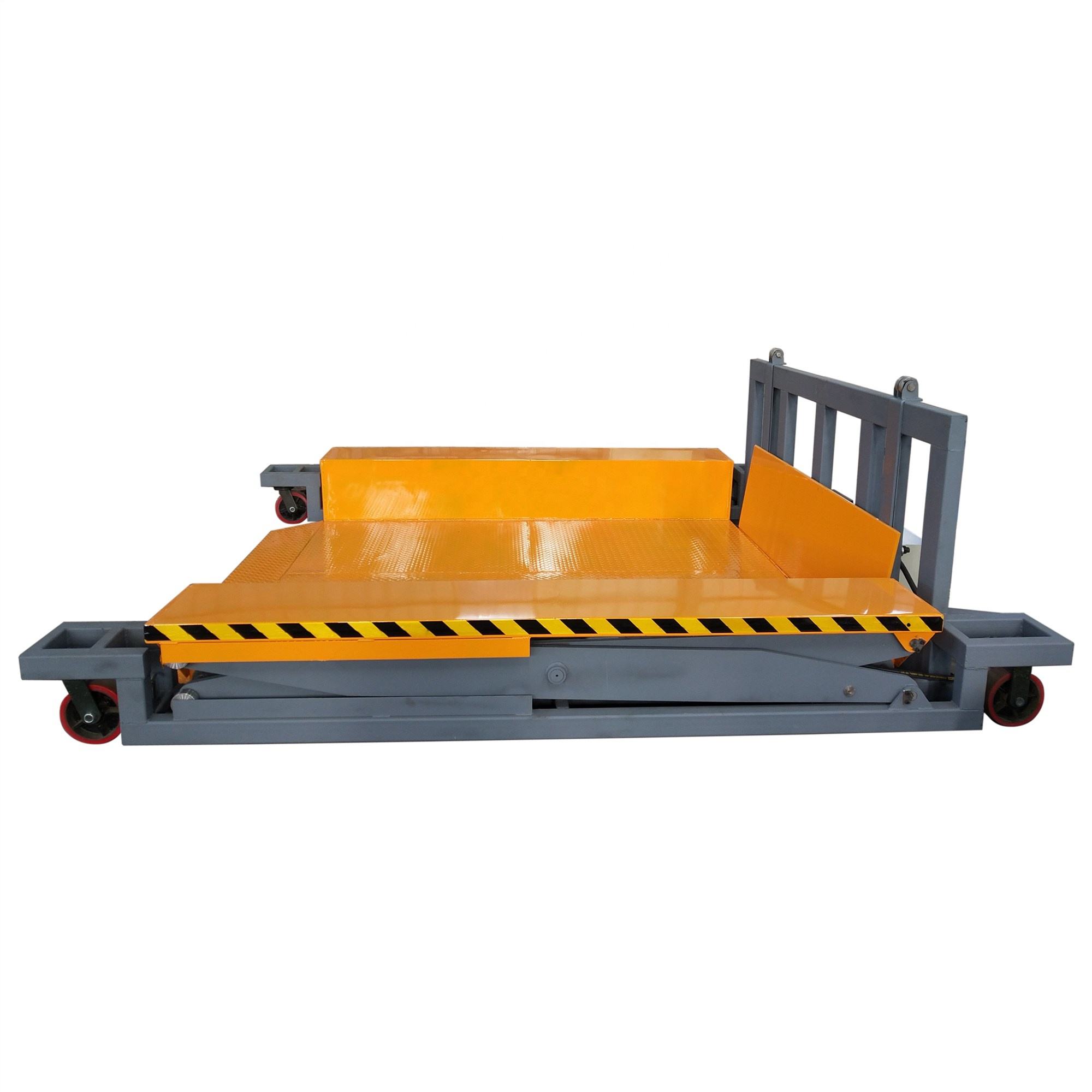

Container Mobile Vertical Lift 1000kg Shear Lift
The Container Mobile Vertical Lift 1000kg Scissor Lift is designed to facilitate the vertical movement of goods, particularly in loading and unloading operations involving containers and trucks.
Key Features
High Load Capacity
Capable of lifting loads up to 1000kg for heavy-duty applications.
Mobility
Equipped with wheels or casters for convenient movement between locations.
Scissor Mechanism
Uses a scissor lift structure to provide stable and controlled vertical lifting.
Hydraulic Operation
Powered by a hydraulic system for smooth lifting and lowering operations.
Safety Features
Includes safety mechanisms to prevent accidental lowering and improve operator safety.
Applications
Loading and Unloading
Suitable for transferring goods between ground level and containers or truck beds.
Warehouse Operations
Useful for stacking and retrieving goods at different heights.
Manufacturing Facilities
Supports movement of heavy components during production processes.
Considerations
Dimensions
Ensure platform size and dimensions fit the required workspace and applications.
Power Requirements
Verify hydraulic system power compatibility with the operating environment.
Safety Compliance
Confirm compliance with regional and industry safety standards.
Product Description

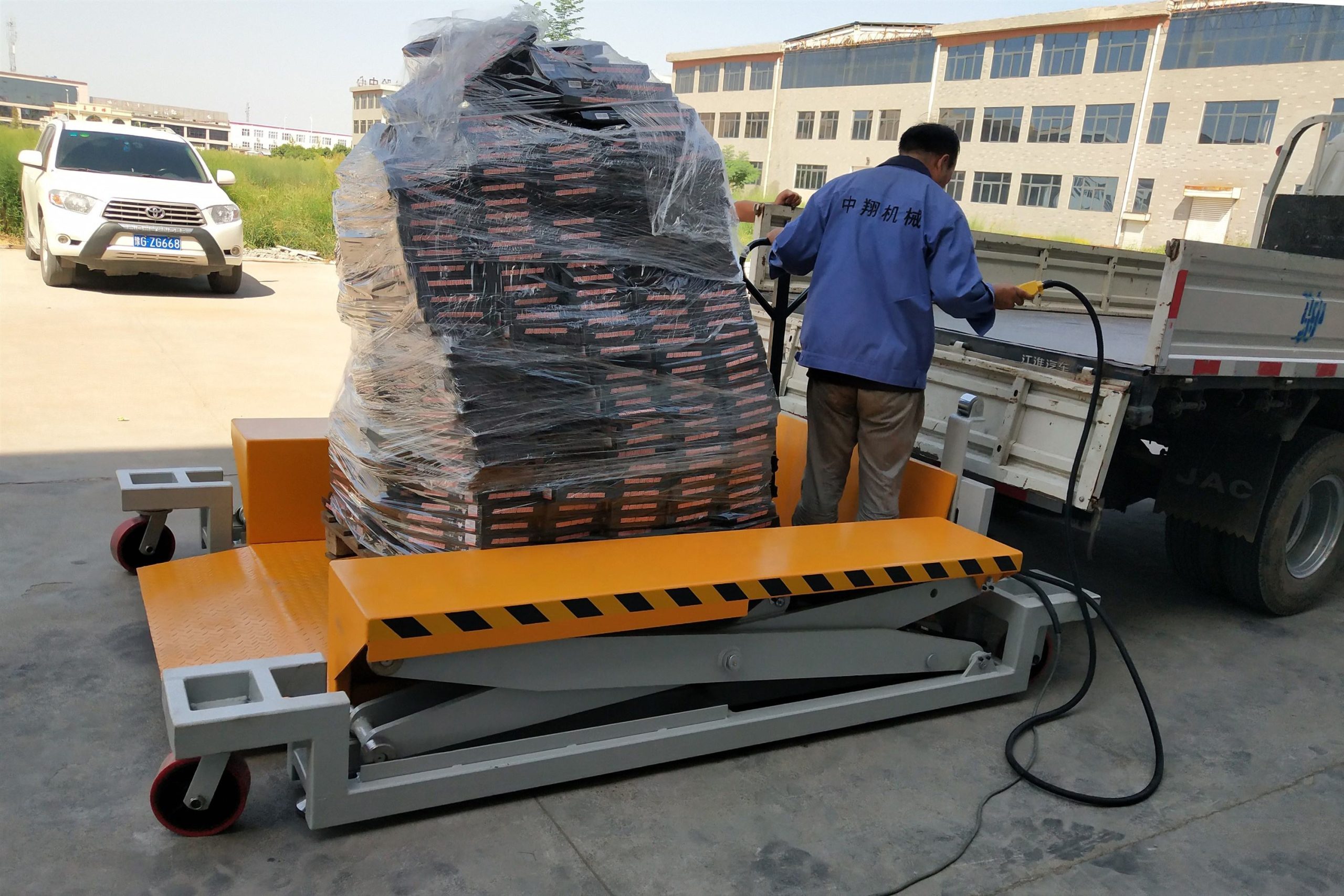

The mobile loading platform is an economical hydraulic lifting platform with high safety and good mechanical performance.
It is widely used in cargo platforms and loading and unloading sites without fixed loading equipment and can be equipped with various auxiliary devices.

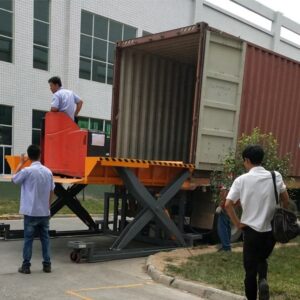

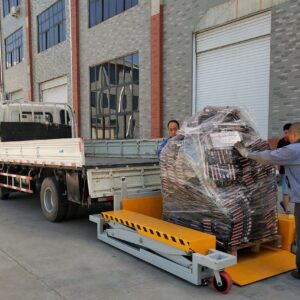

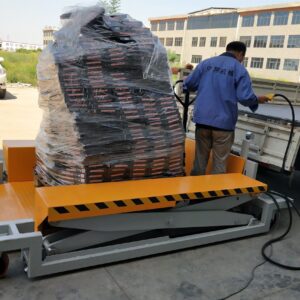

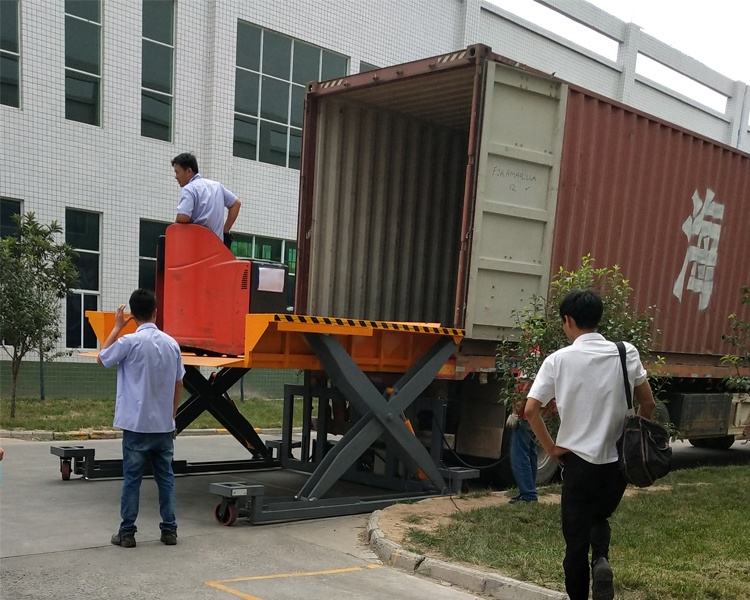

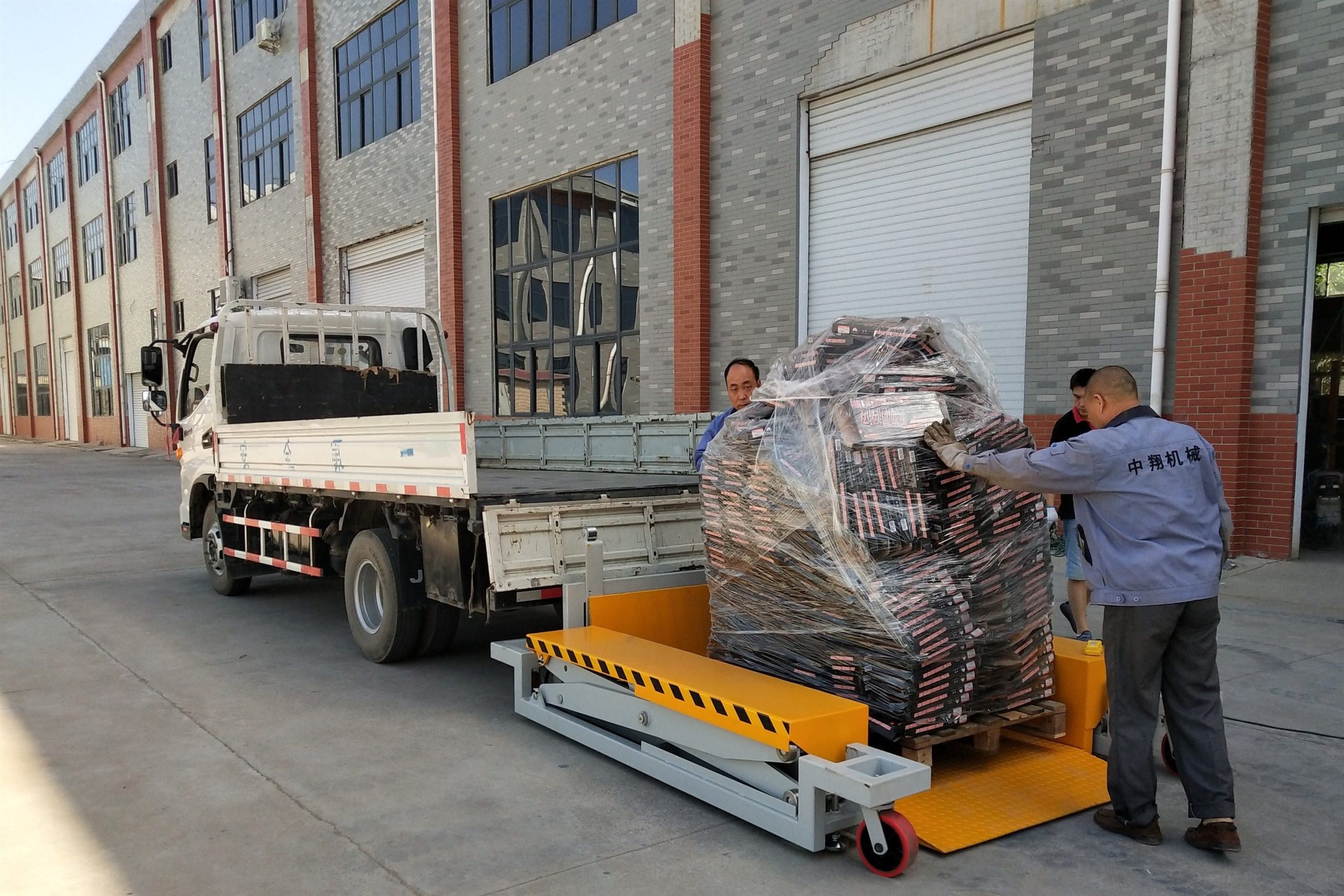

The platform allows forklifts to enter trucks directly for loading and unloading operations, reducing labor intensity and improving logistics efficiency.
Technical Parameters
| Model | Platform Size (L × W) | Rated Load (C) | Min Height (H1) | Max Height (H3) | Wheel Height (H2) | Protection Plate Height (H4) | Protection Plate Height (H5) | Lift Speed | Operating Voltage | Motor Power |
|---|---|---|---|---|---|---|---|---|---|---|
| PTY-01 | 2000 × 1300mm | 1000kg | 60mm | 1300mm | 350mm | 400mm | 600mm | 50mm/s | Custom | 1.5kW |
| PTY-02 | 2300 × 1500mm | 1500kg | 60mm | 1500mm | 350mm | 400mm | 600mm | 50mm/s | Custom | 2.2kW |
Customization
Platform size, height, bearing capacity, and voltage can be customized.
Product Advantages
- No pit required and can be used directly for loading operations.

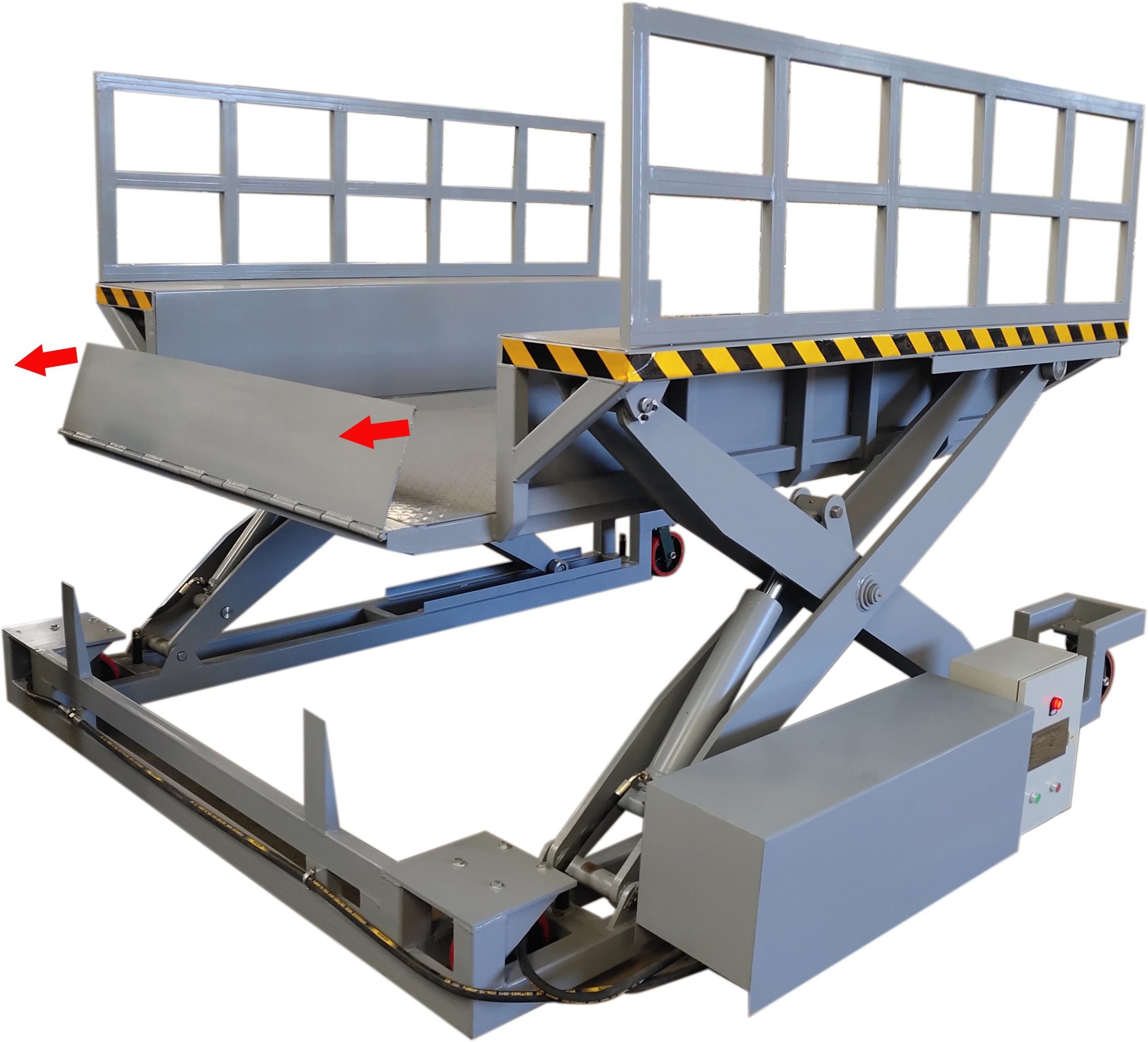

- Automatic board provides seamless connection with trucks for safer operation.
- Easy to move and can be pushed by two people.
- Simplified operation with direct two-button control.
