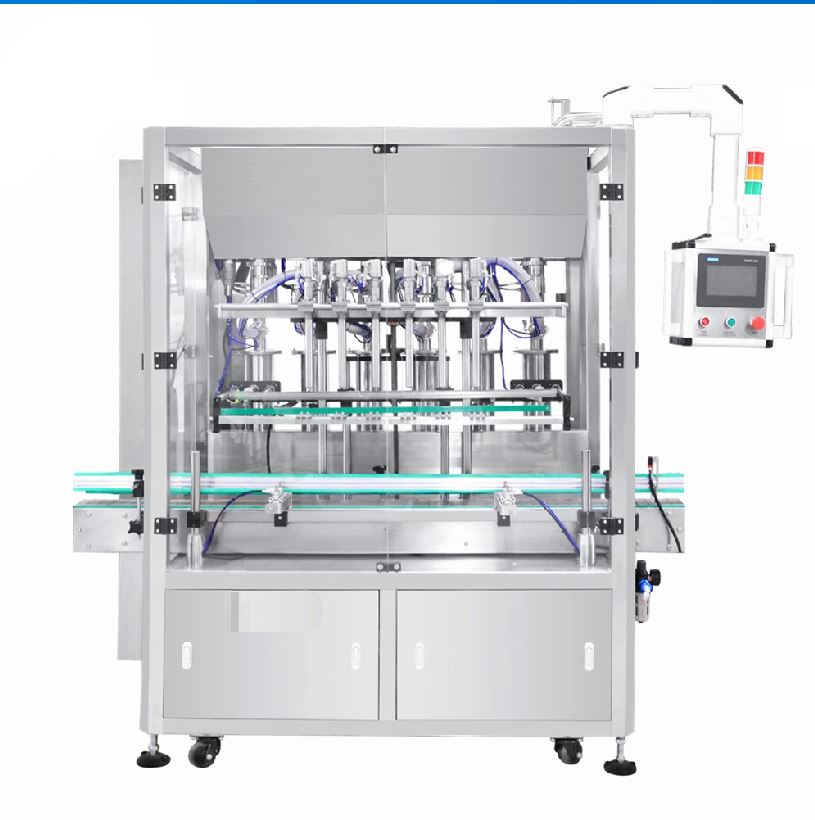

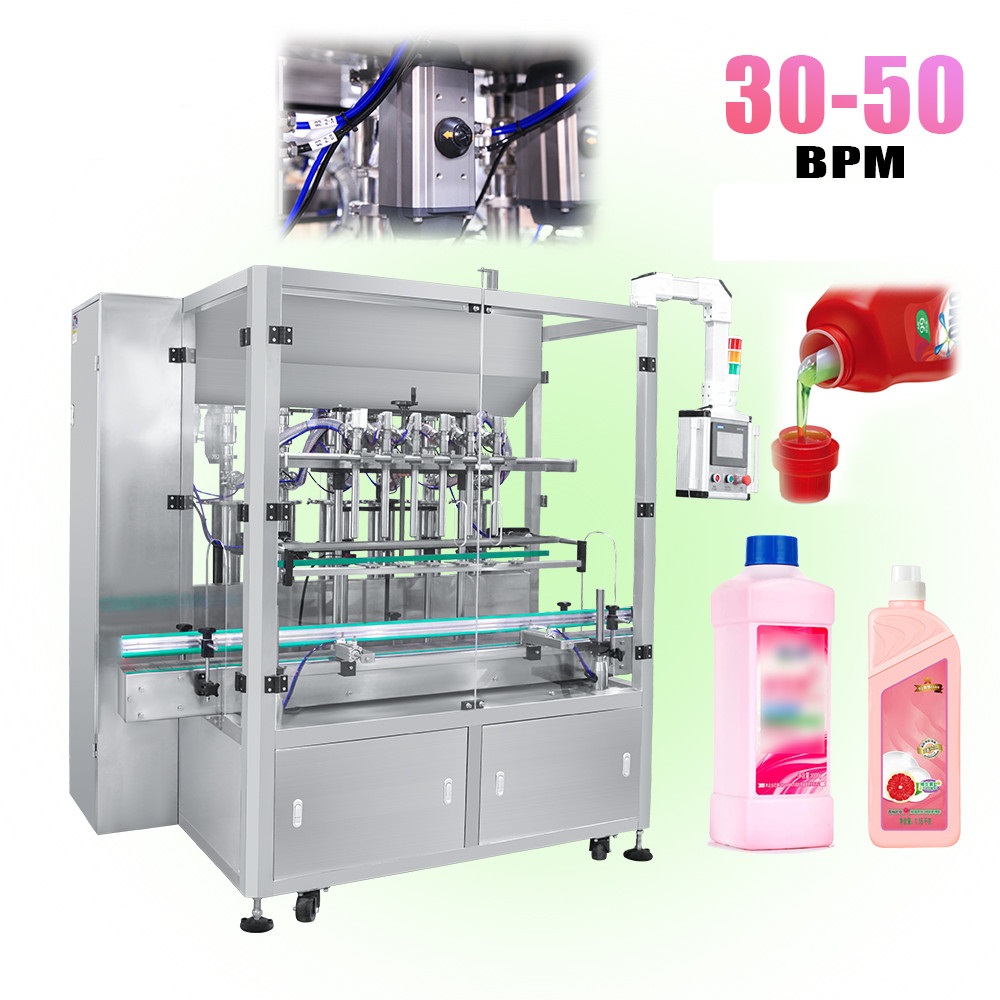

Automatic 6‑Head Liquid Detergent Filling Machine

Introduction

This fully automatic filling machine features six independent filling nozzles and is tailored for precise, high-efficiency filling of liquid detergents and other viscous liquids.

It employs a diaphragm-piston pump system for controlled metering, combined with a user-friendly digital control panel that includes LED display and foot-pedal activation modes.

The all-stainless-steel contact surfaces and anti-drip mechanisms ensure hygiene and minimal product waste, while independent nozzle controls prevent cross-flow between liquids.

Ideal for small to medium production runs in daily chemical manufacturing.

Specifications

Specification	Details
Number of Filling Heads	6
Filling Range	5 – 2000 ml
Filling Accuracy	±1 – 2 %
Filling Speed	Up to 50 bottles/min (varies by model/source)
Pump Type	Diaphragm-piston motor, 300–500 W
Voltage & Power	110–380 V, 300 – 500 W
Maximum Flow Rate	~3–5 L/min
Maximum Suction Lift	~2 m
Control Modes	Manual (foot pedal) / Automatic continuous cycle
Display Interface	LED digital with timer, counter
Machine Dimensions	~520 × 340 × 130 mm (compact); Larger models exist
Gross Weight	~12 kg (desktop); 500 kg+ for industrial versions
Materials in Contact	Stainless Steel (304/316L), silicone tubing
Anti-Drip & Check Valves	Included
Automation Level	Semi-automatic (pedal/automatic)
Warranty	Typically 1 year

Key Features

Six Independent Nozzles

Each head operates separately, enabling multi-product or batch filling without cross-contamination.

Hygienic Construction

Stainless steel contact parts and food-grade tubing ensure easy cleaning and compliance with hygiene standards.

Dual-Mode Operation

Switch between manual foot-pedal activation and fully automated continuous filling cycles for flexibility.

High Precision Metering

Accuracy within ±1–2 %, suitable for both light and heavy liquids, with adjustable timing.

Anti-Drip & Backflow Prevention

Built-in check valves and nozzle design reduce waste and maintain clean operation.

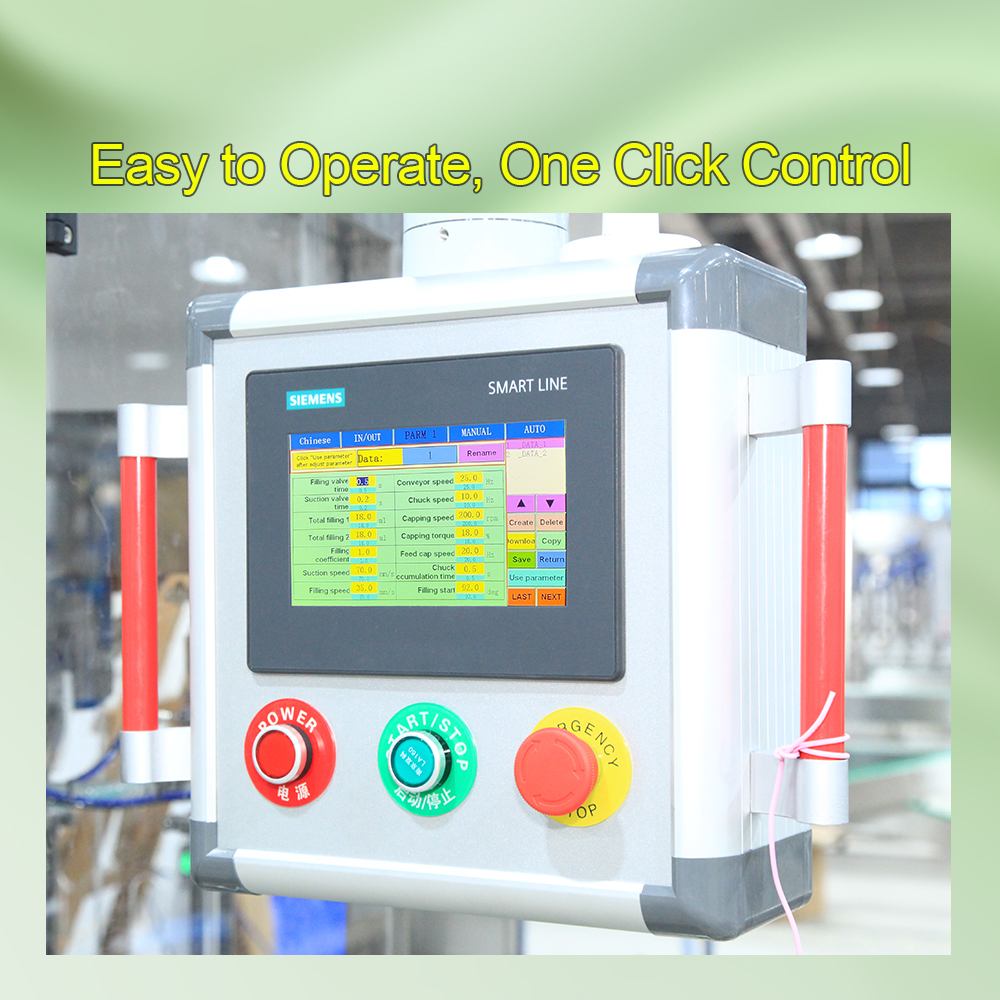

Digital Control Panel

LED display shows fill count, timing, and cycle settings for intuitive operation.

Compact to Industrial Options

Ranges from benchtop models (~12 kg) to full-scale industrial machines (~500 kg) depending on output needs.

Applications

Household Detergents

Ideal for filling laundry, dish, and surface cleaners.

Personal Care Products

Suitable for handwash, shampoo, conditioner, sanitiser, and lotion filling.

Chemical & Industrial Liquids

Works with low-to-medium viscosity liquids such as oils, degreasers, and solvents.

Food-Grade Liquid Products

Can fill cooking oil, sauces, syrups, provided food-safe materials are used.

Laboratories & Small Batches

Precise for pilot runs or small-scale production in development settings.
