Wheel Balance Machine With Laser & Automatic Brake Positioning

Introduction

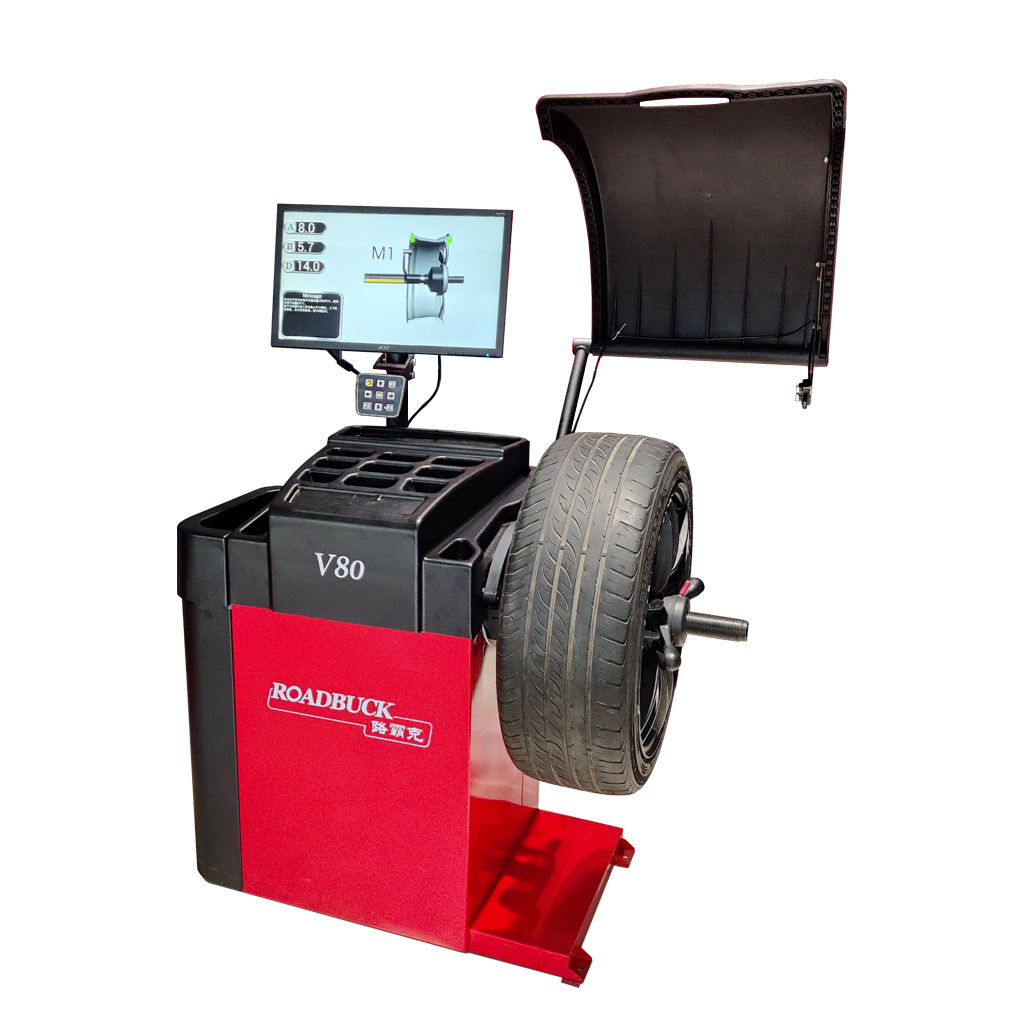

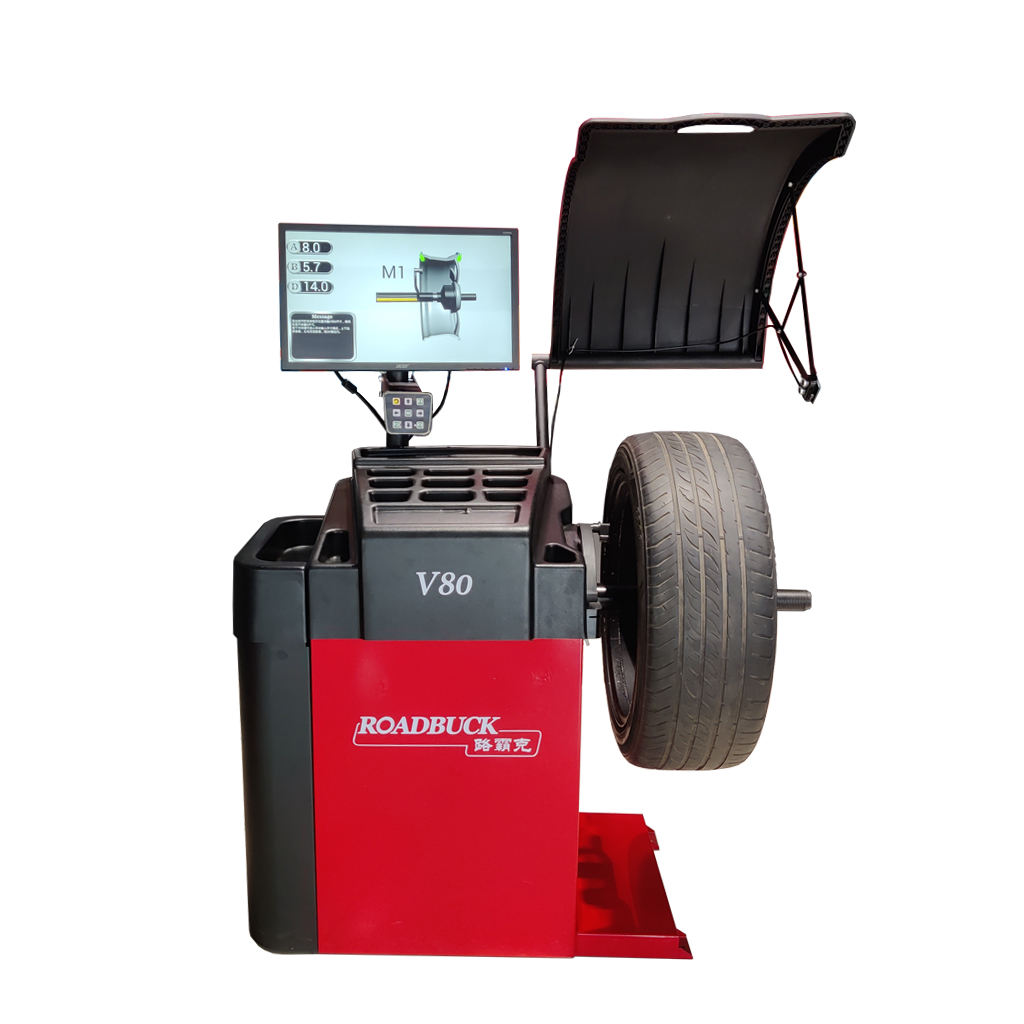

The V80 Wheel Balance Machine is a high precision tire balancing solution designed for professional automotive workshops and tire service centers. Equipped with laser positioning technology, automatic brake positioning, and an advanced Android operating system, this machine delivers accurate and efficient wheel balancing performance. Its durable structure, user friendly interface, and intelligent measuring functions make it ideal for handling a wide range of wheel sizes with maximum precision.

Specifications

Specification	Details
Model Number	V80
Product Name	Tire Balancing Machine
Warranty	12 Months
Color	Red or Blue
Certification	CE / ISO9001
Function	Wheel Balancing
Balancing Accuracy	1g
Balancing Speed	7 Seconds
Max Wheel Diameter	1100 mm
Rim Diameter	10″ – 24″
Rim Width	3″ – 16″
Cabinet Thickness	4 mm
Max Wheel Weight	70 kg
Rotate Speed	90 / 130 rpm
Power Supply	100 / 230V 1PH
Frequency	50 / 60Hz
Net Weight	106 kg

Key Features

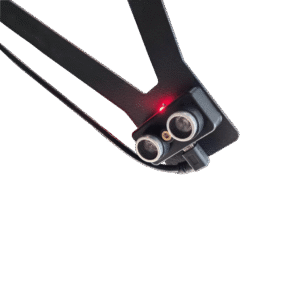

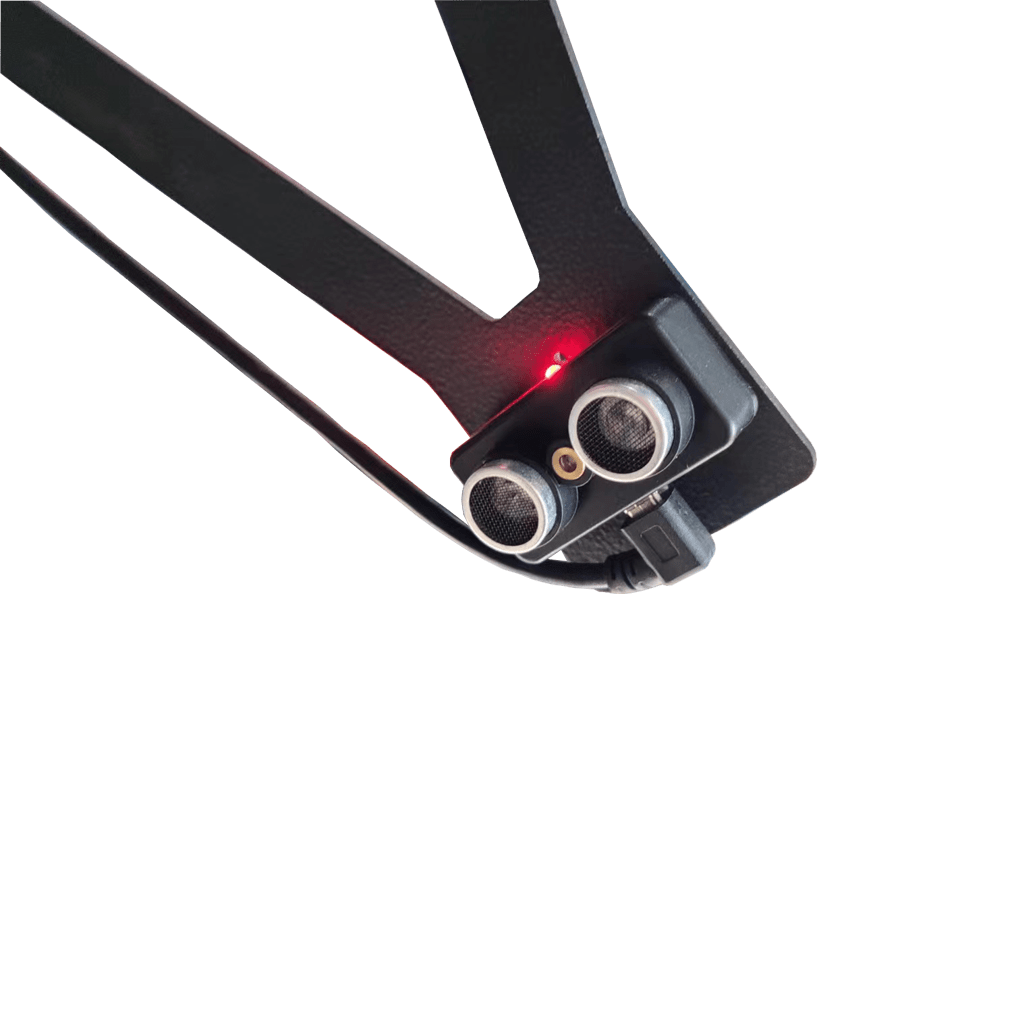

• Automatic Tire Width Measurement:
  Uses ultrasonic technology for fast and accurate tire width detection.

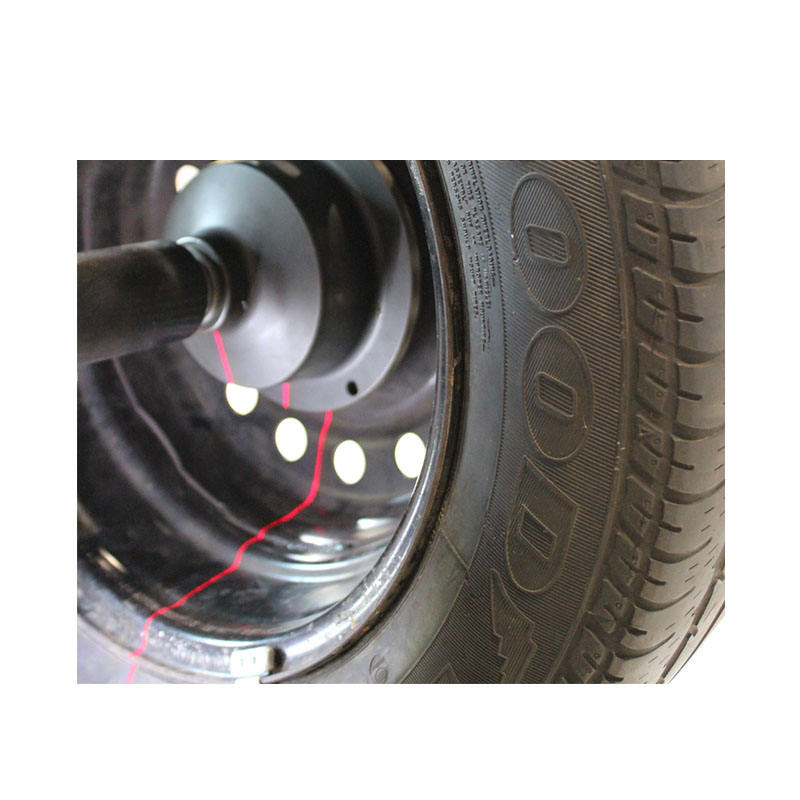

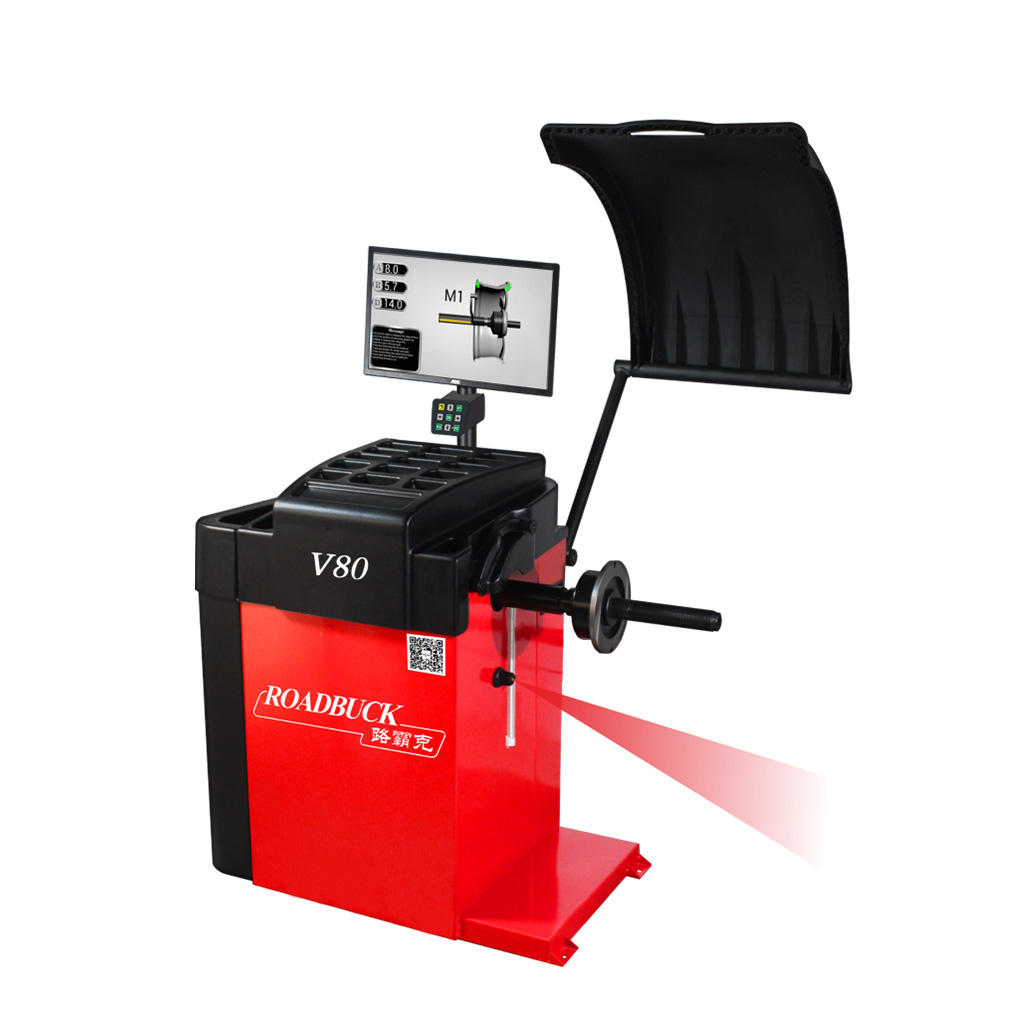

• Dynamic Laser Positioning:
  Laser guidance precisely indicates the wheel imbalance point for easier correction.
• Automatic Brake Positioning:
  The machine automatically stops at the unbalanced position after testing, improving efficiency and accuracy.
• Android Operating System:
  Modern Android based interface ensures smooth and convenient operation.
• OPT Mode Function:
  Simplifies wheel optimization procedures with a more user friendly process.
• Double LED Display Screens:
  Separate displays show inner and outer wheel balancing data clearly and accurately.
• Self Calibration & Diagnostic Function:
  Built in self testing and calibration help maintain reliable performance and reduce maintenance time.
• Extended Transmission Shaft:
  355 mm shaft length supports different wheel sizes and improves versatility.
• Heavy Duty Cabinet Structure:
  Constructed using reinforced steel plate combination cabinet for durability and reduced vibration during operation.
• Quick Locking Nut:
  Standard cone quick locking nut allows fast wheel installation and removal.

Applications

• Automotive repair workshops
• Tire balancing service centers
• Car maintenance garages
• Wheel and tire retail shops
• Professional automotive service stations

Why Choose This Product?

High Precision Performance

Provides 1g balancing accuracy with advanced laser technology for reliable wheel balancing results.

Fast & Efficient Operation

Balances wheels in just 7 seconds with automatic positioning and intelligent operation features.

Durable Construction

Heavy duty steel cabinet design minimizes vibration and ensures long term reliability.

Smart User Interface

Android operating system and dual LED displays offer easy operation and improved productivity for technicians.
