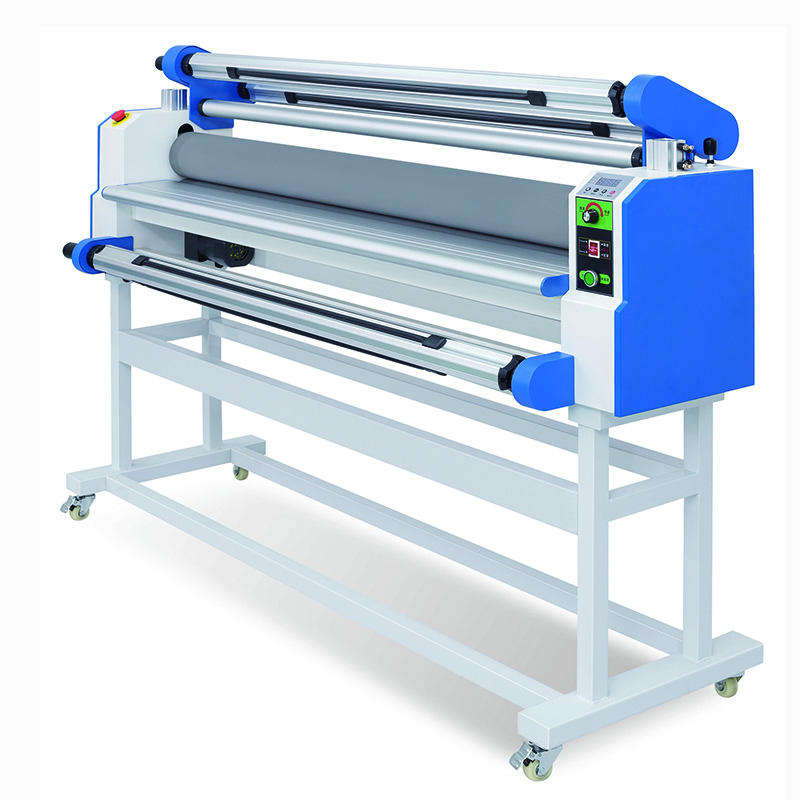

WD-1680A Wide Format Hot & Cold Laminating Machine
Key Features
Wide-format lamination up to 1520 mm
Supports both hot and cold lamination modes
Adjustable speed control (0–10 m/min)

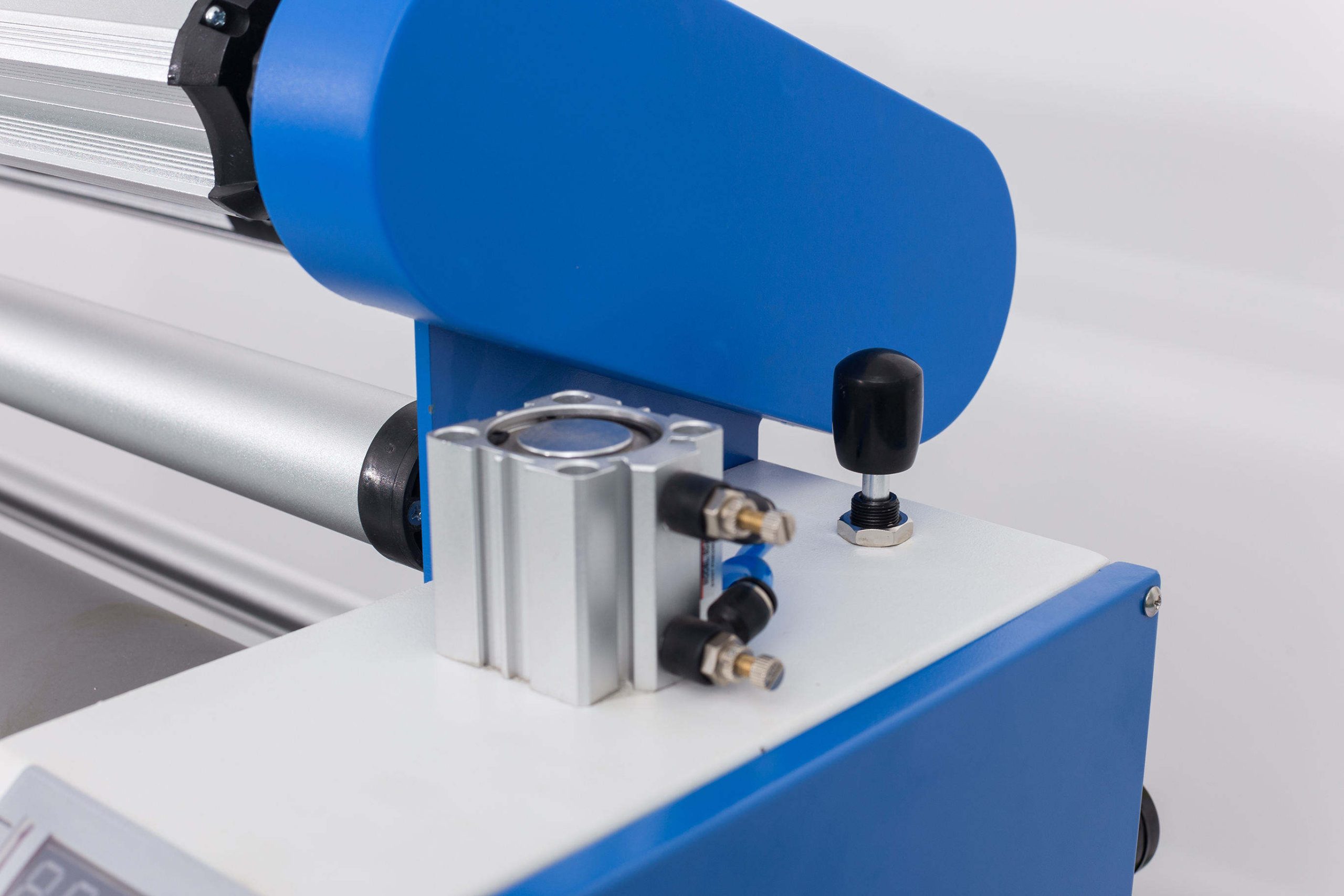

Heavy-duty pneumatic pressure system
130 mm silicone rollers for smooth output
High thickness handling up to 28 mm
Stable industrial-grade construction
User-friendly control system
Suitable for continuous professional use
Multi-industry application support
Overview
The WD-1680A laminating machine is designed for large-format and industrial lamination tasks. It delivers stable performance for printing, advertising, garment, and packaging industries where precision and wide coverage are required.
Performance & Efficiency
With adjustable speeds up to 10 meters per minute, the machine supports both fast production and precision lamination. Its pneumatic pressure system ensures even adhesion and high-quality finishing results.
Build & Construction

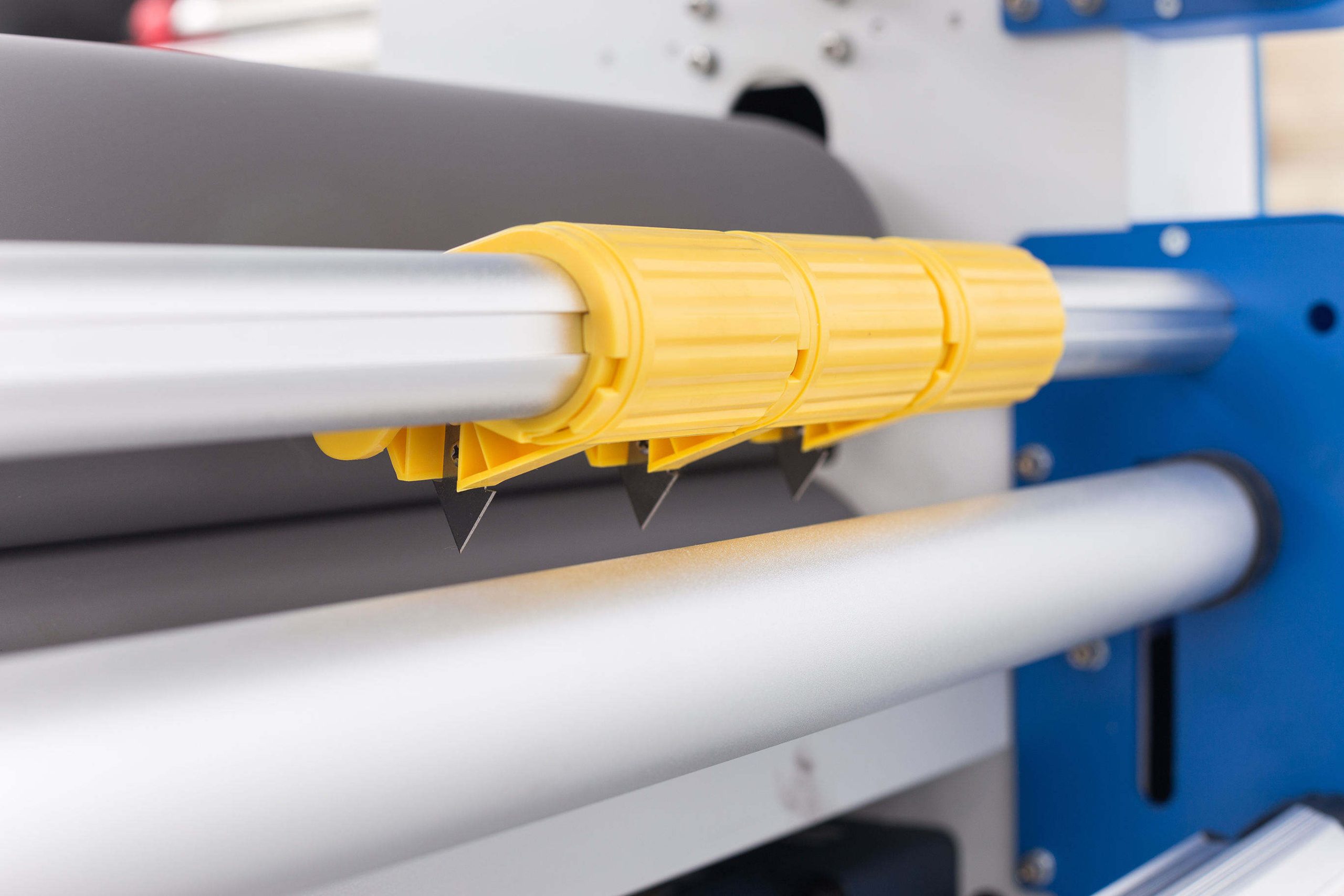

Built with a strong 180 kg frame, the WD-1680A ensures stability during operation. The silicon roller system provides smooth pressure distribution for consistent lamination quality.

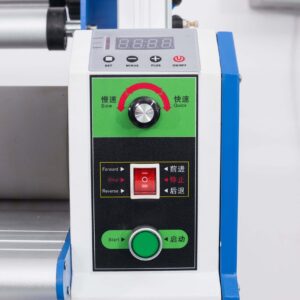

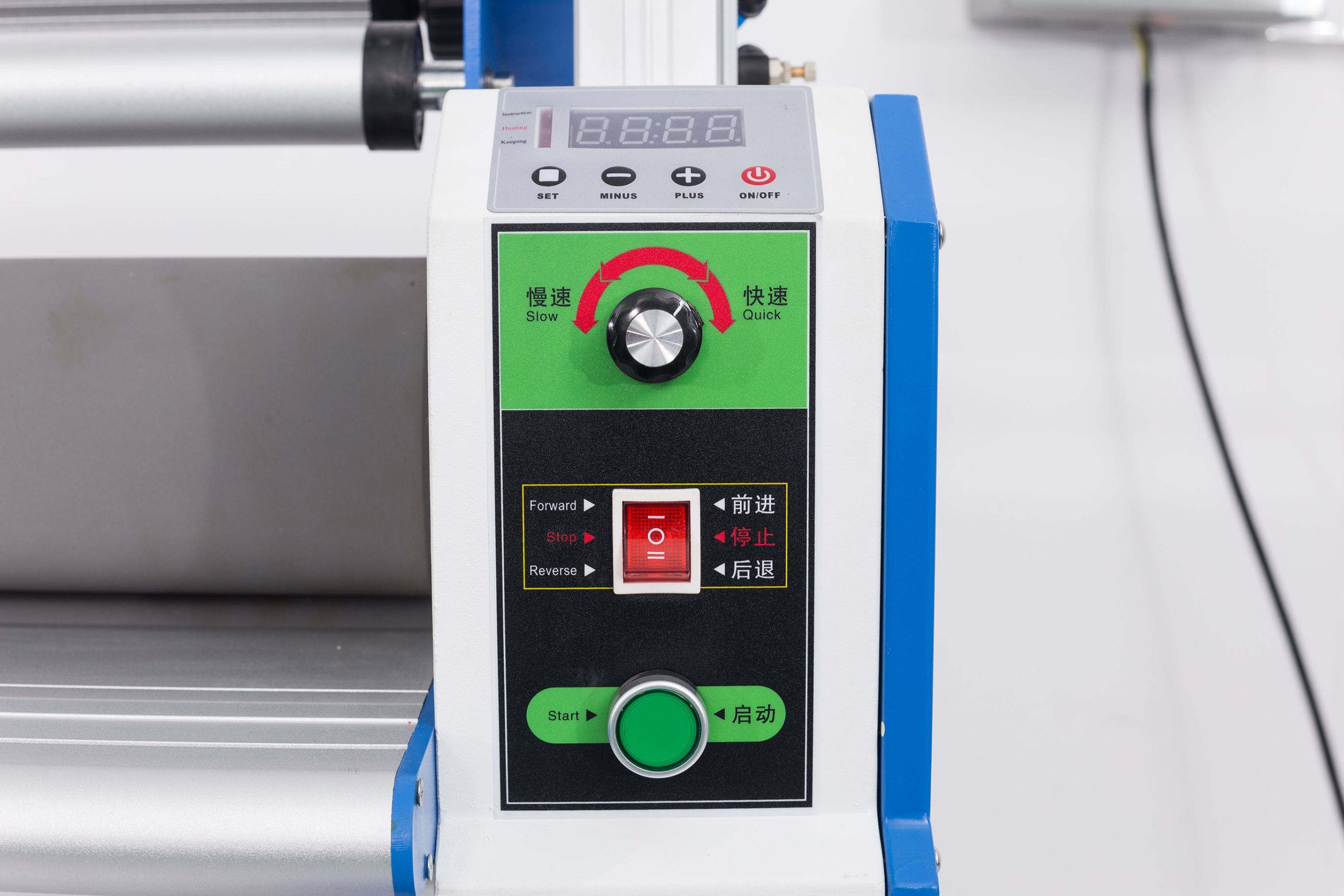

Operation & Control
The machine features an easy-to-use interface designed for operators of all skill levels. Adjustable speed and pressure settings allow precise control for different materials and applications.
Heating & Processing
Operates from room temperature up to 60°C for controlled lamination. Supports both hot and cold processes depending on material requirements.
Applications
Printing and advertising production
Garment and textile shops
Food packaging industries
Industrial signage and banners
Technical documentation lamination
Why Choose This Laminator?
✔ Extra-wide 1520 mm working width
✔ Pneumatic pressure for smooth results
✔ Adjustable speed up to 10 m/min
✔ Durable industrial construction
✔ Suitable for multiple industries
Technical Specifications
Type: Hot & cold laminating machine
Voltage: 220V, 1 phase, 50Hz
Laminating Width: ≤1520 mm
Speed: 0–10 m/min
Thickness Capacity: ≤28 mm
Roller Diameter: 130 mm
Roller Material: Silicone
Working Temperature: Room temperature – 60°C
Pressure System: Pneumatic
Core Component: Motor (6-month warranty)
Net Weight: 180 kg
Gross Weight: 210 kg
Packing Size: 2000 × 630 × 680 mm
Warranty: 1 year
Applications
Large-format printing
Advertising banners and posters
Garment and textile lamination
Food and packaging industries
Industrial technical document protection
