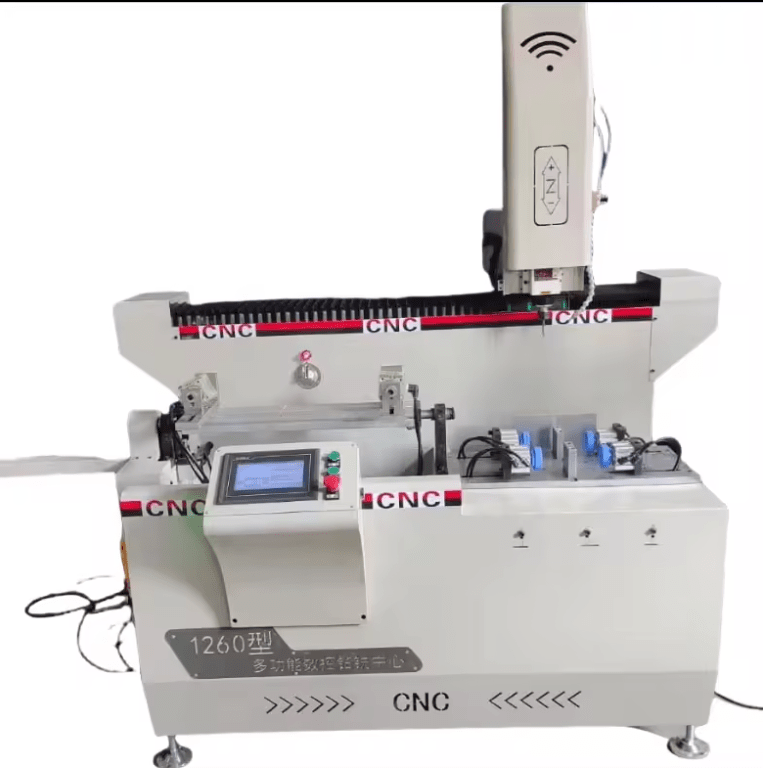

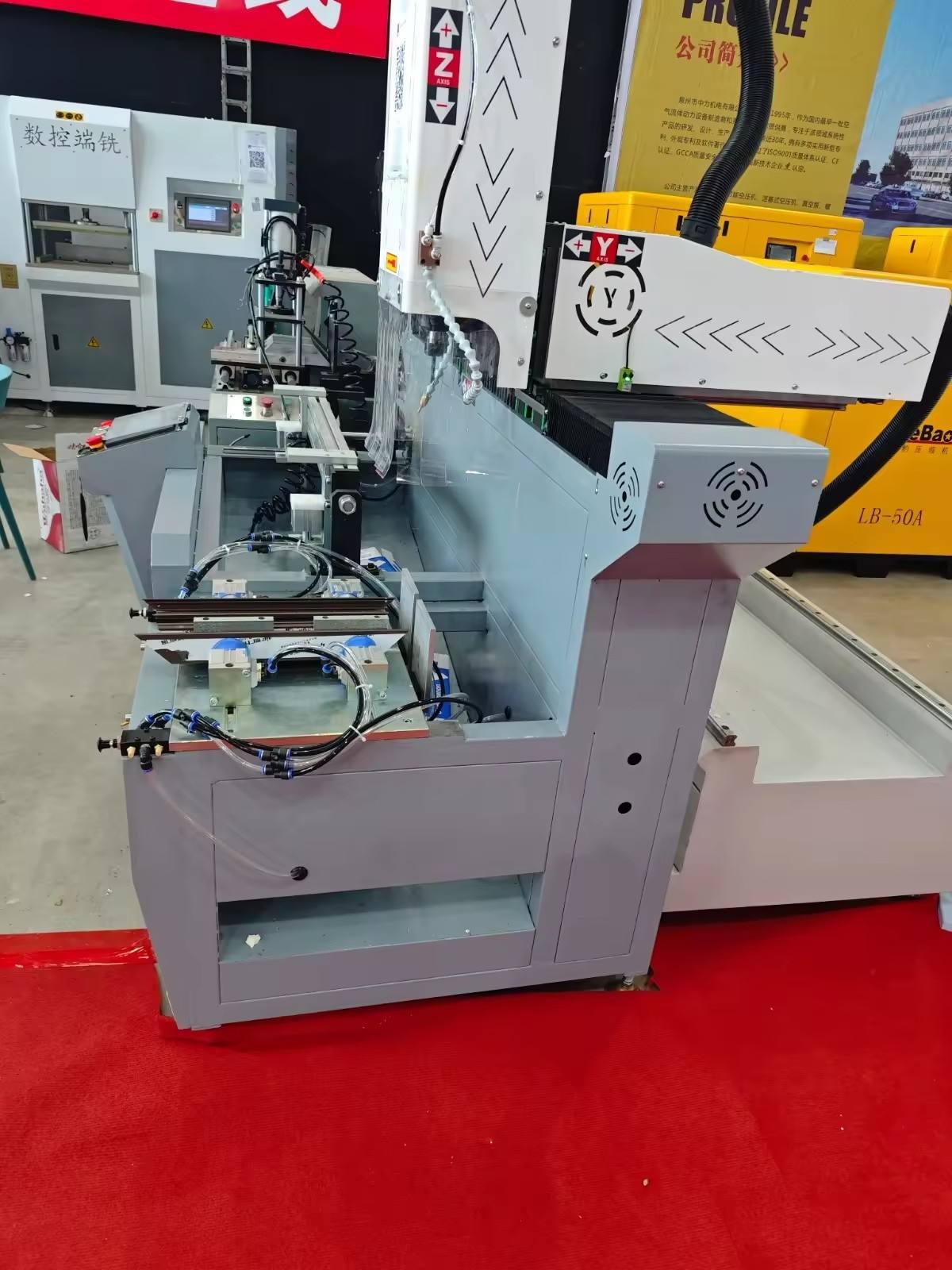

High-Quality CNC Router Milling and Drilling Machine for Aluminum Window Door Making
Briefing
The product is a High-Quality CNC Router Milling and Cutting Machine. This machine is designed for efficient and precise milling and cutting of various materials using CNC technology.
Key Specifications
Type: CNC Router Milling and Cutting Machine
Material: Steel
Operation: Automatic
Power: Varies based on model
Voltage: 220V / 380V
Cutting Capacity: Varies based on model
Rotary Speed: Varies based on model
Weight: Varies based on model
Dimensions: Customizable
Control: Electric with CNC control system
Applications
Woodworking: Ideal for milling and cutting wood in various woodworking projects.
Metalworking: Suitable for milling and cutting metal in various metalworking projects.
Plastic and Composite Materials: Can be used for milling and cutting plastic and composite materials.
Customizable: Can be customized for different sizes and specifications.
Summary
This high-quality CNC router milling and cutting machine offers a powerful and efficient solution for processing various materials. It is designed for automatic operation with a high-precision CNC control system, making it suitable for industries such as woodworking, metalworking, and plastic processing. The machine is customizable in size and configuration, ensuring flexibility for different production needs.
Key Features
- The spindle adopts an air-cooled electric spindle with a power of 9KW and a maximum speed of 24000 rpm, with high precision, safety, and reliability.

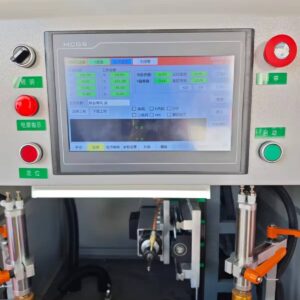

- Equipped with German PA industrial CNC system with CAD-CAM software for simple operation and high efficiency.
- Can be equipped with up to 6 tool magazines for continuous processing.

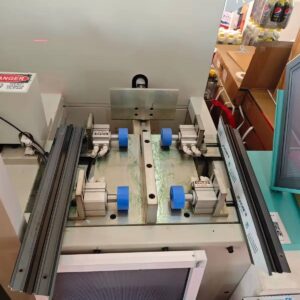

- Worktable supports 180° rotation (-90° to +90°), enabling multi-side profile processing in one clamping.
- Automatic oil supply system and spray cooling system for tools.
- Steel structure with vibration aging stress relief treatment for stable operation.
Product Parameters
WSZ-CNC-3200 (single head) / WSZ-CNC-1500 (double head) / WSZ-CNC-1200 (single head) / WSZ-CNC-800 (single head)
Power Supply: 380V 50Hz
Input Power: 9kW / 9.5kW / 3.5kW / 3.5kW
Rotating Speed: 18000 rpm
Air Pressure: 0.5–0.8 MPa
X-axis Travel: 3200mm / 1500mm / 1200mm / 800mm
Y-axis Travel: 400mm / 300mm / 300mm / 300mm
Z-axis Travel: 300mm / 280mm / 280mm / 280mm
Processing Range: 130×150mm / 110×150mm / 110×150mm / 110×150mm
Overall Dimension: 4000×2000×2800mm / 2000×1800×2300mm / 1650×1500×2000mm / 1400×1500×2000mm
Conclusion
This CNC router machine provides high precision, strong performance, and flexible customization options, making it a reliable solution for aluminum, woodworking, and multi-material processing industries.
