High Aluminium Machine Efficiency Automatic Corner Connector Cutting

R118 454,81

SKU: GTM-2025022420262 Category: Industrial Machinery

Description

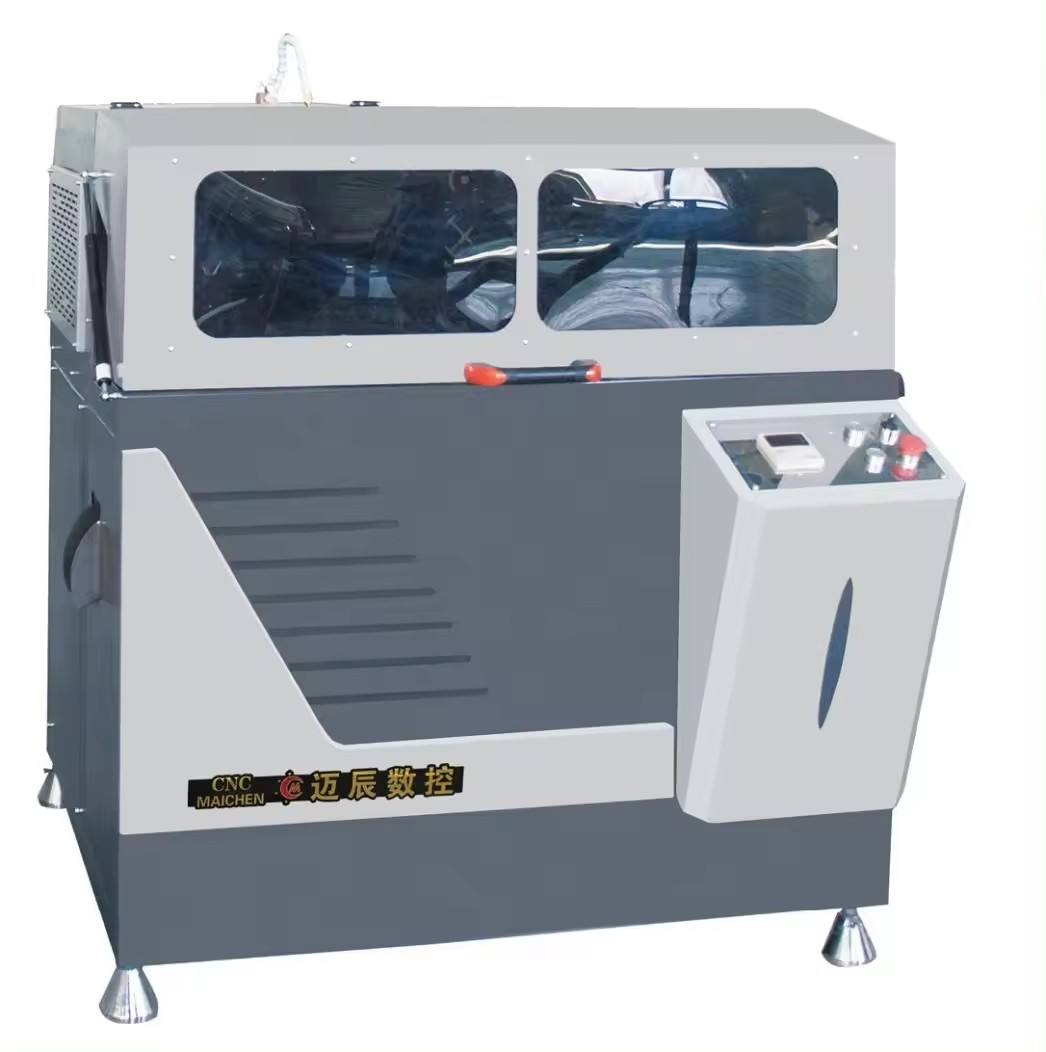

High Efficiency Automatic Corner Connector Cutting Machine for Aluminum

Overview

The High Efficiency Automatic Corner Connector Cutting Machine is designed for effortless operation, allowing users to streamline window and door processing tasks. This machine provides a powerful and efficient solution for cutting corner connectors for aluminum and UPVC profiles. It is designed for automatic operation with a high-precision control system, making it suitable for various industries such as window and door manufacturing. The machine is customizable in terms of size and specifications, and its durable construction and advanced control features ensure reliable performance.

Key Specifications

Specification	Details
Type	Automatic Corner Connector Cutting Machine
Material	Steel
Operation	Automatic
Power	3 kW (Motor 2.2 kW)
Voltage	380V/50Hz
Cutting Capacity	5-700 mm length; 120×120 mm width and height
Cutting Angles	90°
Saw Blade Specification	500x30x4.4 mm, Z=120
Motor Speed	2840 RPM
Weight	Approx. 750 kg
Dimensions	5670x1770x1840 mm
Control	Electric with digital display
Operating air pressure	0.5-0.8 Mpa
Air consumption	120 L/Min

Key Features

Fully Automatic Operation: Primarily used for cutting aluminum corner connectors with fully automatic processes.
Precision Control: Automatic feeding is realized by PLC and precision lead screw; saw blade feeding is driven by a gas-liquid damping cylinder.
Automatic Counting: System records the number of cutting pieces to facilitate batch cutting.
Touch Screen Interface: Presetting of connector size and cutting quantity is done on a touch screen for easy operation.
High-Precision Components: Equipped with imported carbide saw blades for high processing precision and durability.
Ease of Maintenance: Designed with modular components for convenient maintenance, replacement, and troubleshooting.
Reliable Performance: Parts undergo rigorous testing, including functional, durability, and environmental fitness tests.
Stable and Efficient: Engineered for stability and performance degradation resistance, whether used continuously or intermittently.

Applications

Aluminum and UPVC Window and Door Making: Ideal for cutting corner connectors for profiles used in window and door manufacturing.
Industry Versatility: Suitable for building material shops, machinery repair shops, manufacturing plants, and construction works.
Customizable: Can be customized for different sizes and specifications to suit varied project requirements.
