Double-Layer Color Steel Roofing Roll Forming Machine

Name: Double-Layer Color Steel Roofing Roll Forming Machine - Trade Market Place SA
SKU: GTM-202507143009
Price: 553503.60 ZAR
Availability: InStock

R553 503,60

Industrial double-layer roll forming machine for color-steel roofing and wall panels. Processes coil width ~1000 mm, thickness 0.3–0.8 mm, with dual profiles (9–16 stations), speeds of 8–14 m/min, PLC control, and hydraulic cutting—delivering flexible, high-precision sheet production.

SKU: GTM-202507143009 Category: Construction Machinery-Equipment & Building Materials

Description
Reviews (0)

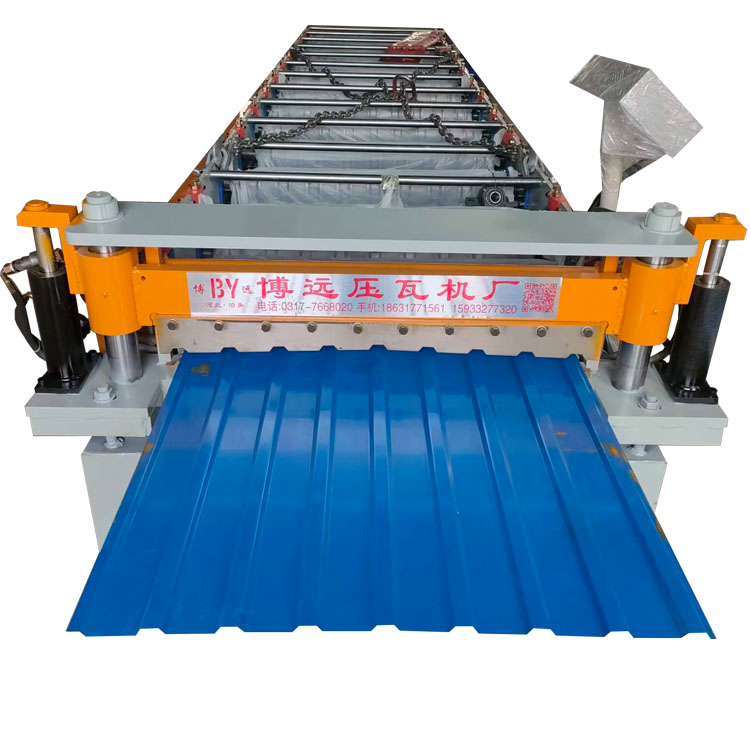

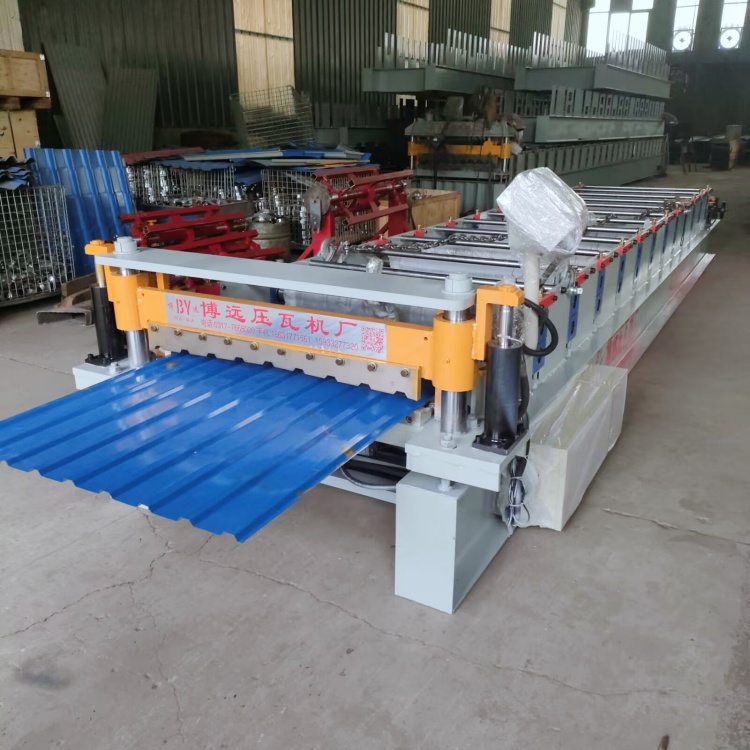

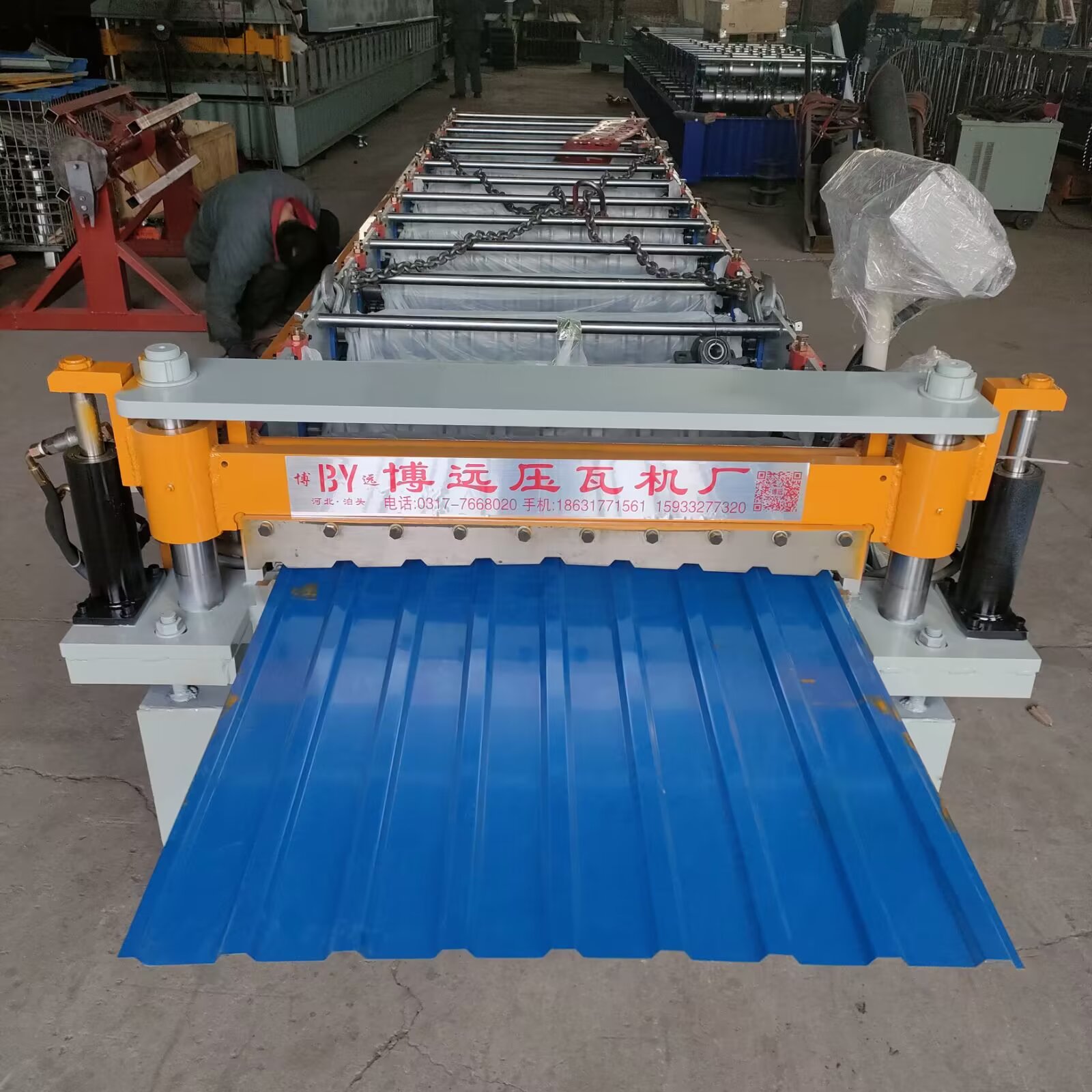

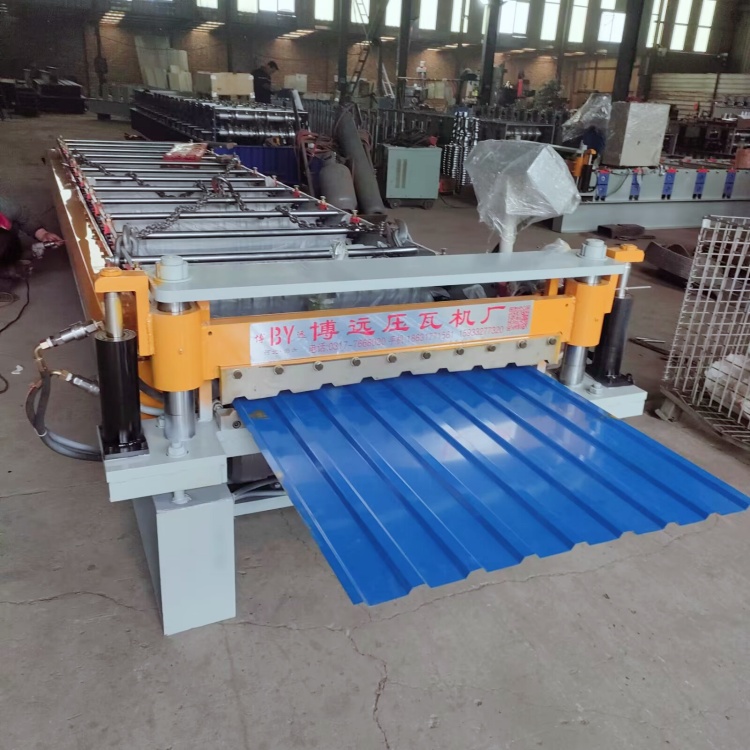

Double-Layer Color Steel Roll Forming Machine

This double-layer color steel roll forming machine is designed for efficient production of metal roofing and wall panels, offering two distinct profiles in one compact unit. Built to process pre-painted or galvanized coils, it enables manufacturers to switch easily between profile designs without requiring separate lines.

Featuring PLC touchscreen control, hydraulic cutting, and high-precision forming rollers, the system delivers smooth, scratch-free sheet surfaces and consistent dimensions. It is ideal for facilities needing flexibility, accuracy, and high output in sheet metal manufacturing.

Key Features

Dual-Profile Production: Enables production of two distinct roofing or wall panel profiles using the same machine—ideal for versatile manufacturing.

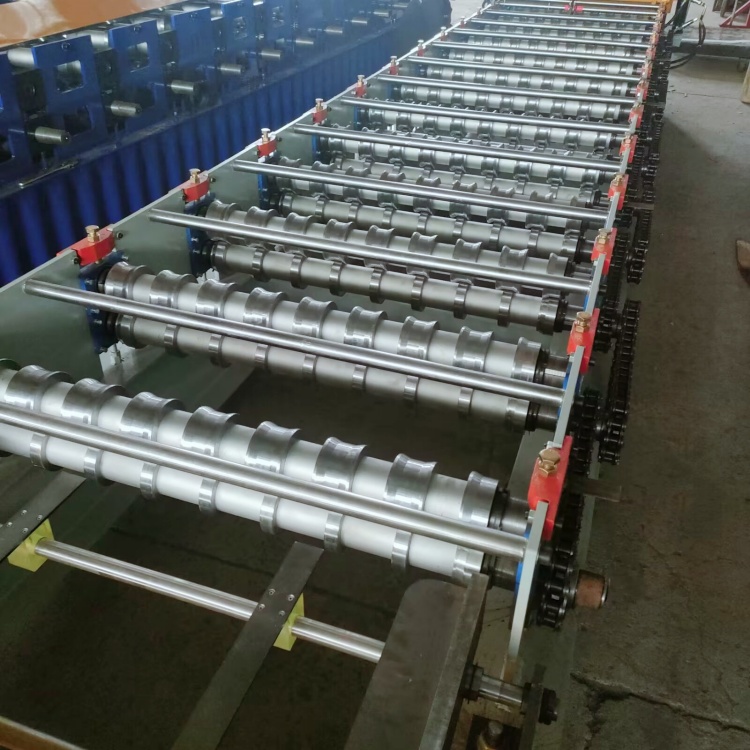

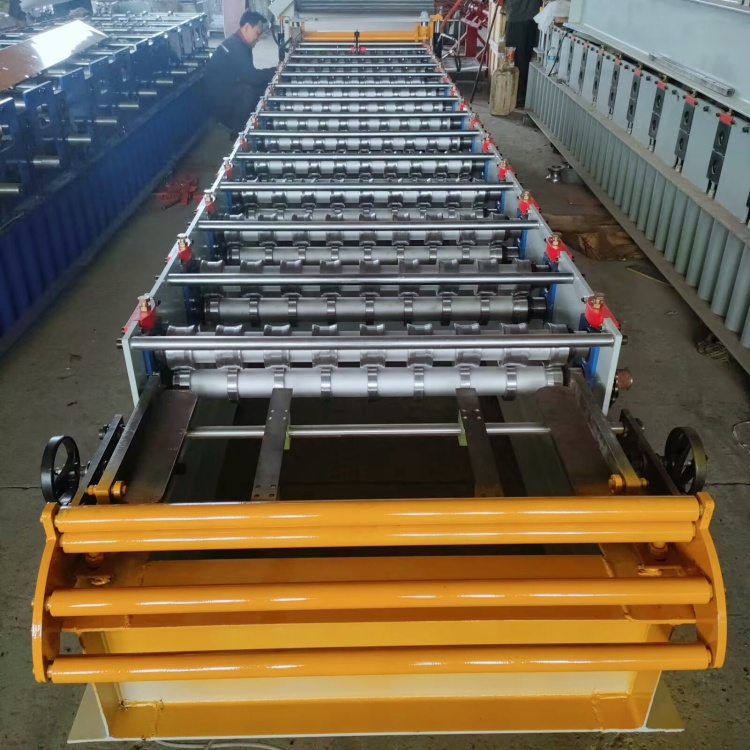

High Precision Roll Forming: Chrome-coated 45# steel rollers and precision shafts ensure smooth, accurate forming with no surface damage.
Automated Operation & Cutting: PLC-controlled system simplifies input of length/quantity; hydraulic cutting ensures clean, accurate sheet ends.
Efficient Production Speed: Capable of producing sheets at 8–14 m per minute to support high-volume output.
Powerful Industrial Design: Includes separate high-power main and hydraulic motors for stable, continuous operation.
Robust Build & Modular Layout: Heavy structural frame with careful engineering ensures durability and ease of maintenance.

Specifications

Specification	Details
Material Type	Color steel coil, galvanized coil, or aluminized zinc coil
Thickness Range	0.3 – 0.8 mm
Coil Feeding Width	~1000 – 1200 mm
Effective Product Width	Typically 820 – 1100 mm depending on profile
Roll Forming Stations	9 – 16 stations per layer (two profiles)
Shafts Material & Diameter	45# steel; ~70–95 mm
Main Motor Power	~3 – 5.5 kW (per forming line)
Hydraulic Pump Power	~3 – 5.5 kW
Forming Speed	8 – 14 m/min
Control System	PLC with touchscreen interface
Cutting Method	Hydraulic cutoff
Drive System	Chain and sprocket transmission
Machine Dimensions	Approx. 6.5 – 7.5 m (L) × 1.3 – 1.6 m (W) × 1.3 – 1.5 m (H)
Total Weight	~3.5 – 6 tons
Certifications	CE, ISO (typical)
Warranty	12 months

Applications

Manufacturing of metal roof tiles (corrugated, trapezoidal, glazed) for residential, commercial, or industrial buildings.
Production of dual-panel wall cladding and façade systems in consolidated factory lines.
Flexible contract manufacturing where multiple sheet profiles are required without multiple machines.
Facilities aiming to maximize floor space with compact dual-line configurations.
