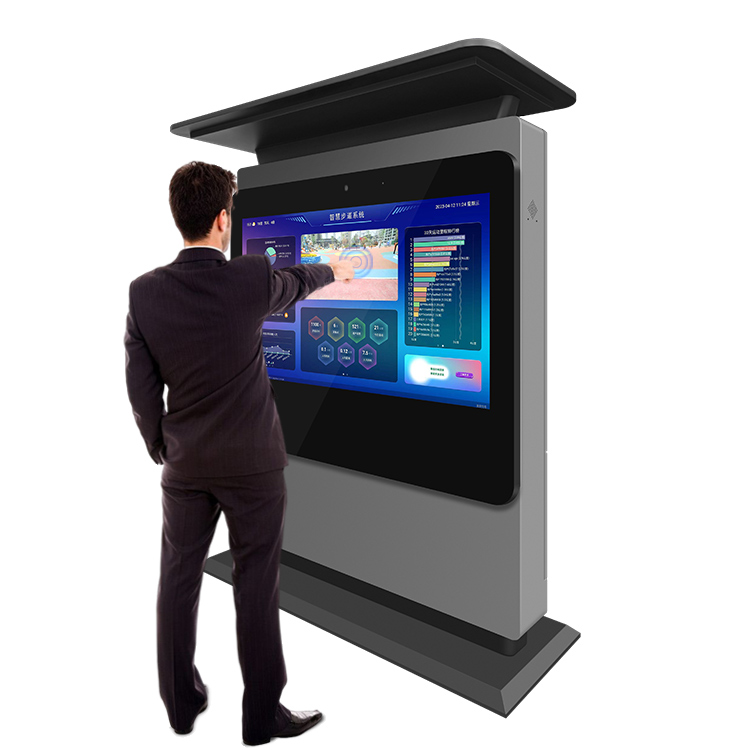

Commercial Outdoor LCD Digital Signage Kiosk – Robust Interactive Display Solution
Introduction
This Commercial Outdoor LCD Digital Signage Kiosk is a robust and highly durable display solution specifically engineered for challenging outdoor environments. Designed to operate reliably in various weather conditions, it boasts waterproof (IP65/IP66), dust-proof, rust-proof, and anti-theft features. The kiosk integrates advanced cooling systems (air conditioning or fan cooling) to ensure optimal performance across a wide temperature range. With high brightness (up to 3000 nits), its LCD screen remains clearly visible even in direct sunlight. Available in multiple sizes and offering optional touch screen functionality and smart operating systems (Android/Windows), this kiosk provides a dynamic and interactive platform for businesses to engage audiences and deliver information effectively outdoors.
Application Usage
This outdoor LCD digital signage kiosk is ideal for commercial and public sector applications that require resilient, high-visibility, and interactive displays in outdoor settings. Key applications include:
- Retail and Commercial Centers: Enhancing customer engagement through dynamic advertising, promotions, and interactive product information
- Public Transportation Hubs: Providing real-time schedules, wayfinding, and public service announcements at bus stops, train stations, and airports
- Drive-Thru Restaurants: Serving as interactive menu boards and order points, even in varying weather conditions
- Smart City Initiatives: Deploying for civic information, emergency alerts, community updates, and interactive city guides
- Gas Stations and Automotive Services: Displaying fuel prices, special offers, and service information
- Stadiums and Event Venues: Showcasing event schedules, advertising, and visitor information outdoors
- Educational Campuses: Informing students and visitors with campus maps, event details, and important notices in outdoor common areas
- Outdoor Advertising Networks: Forming part of large-scale digital out-of-home (DOOH) advertising campaigns
Specifications
| Attribute | Value |
|---|---|
| Display Type | LCD Digital Signage Kiosk, Advertising Display |
| Installation | Floor-standing, Vertical, Fixed on Street Pole |
| Screen Sizes | 32″, 43″, 49″, 55″, 65″, 75″, 85″, 100″ (various options available) |
| Resolution | Full HD (1920×1080) or 4K UHD (3840×2160) |
| Brightness | 2000 – 3000 cd/m² (high brightness for outdoor visibility) |
| IP Rating | IP65, IP66 (Waterproof, Dustproof) |
| Operating System | Android, Windows (optional), Standalone |
| Connectivity | Wi-Fi, Ethernet (RJ45), Optional 3G/4G |
| Touch Screen Option | Infrared (IR) or Capacitive (optional) |
| Aspect Ratio | 16:9 |
| Contrast | 4000:1 (typical) |
| View Angle | 178°/178° (full view angle) |
| Response Time | 6.5 ms |
| Audio/Speakers | 2 × 8Ω 10W Speakers, 1 × 30W Amplifier |
| Working Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +80°C |
| Humidity | 20-80% RH at 40°C |
| System Power Supply | AC 110 – 240V, 50/60Hz |
| Product Cover Material | Cold rolled steel with powder coating, aluminum alloy, toughened glass |
| Supported Formats | MPEG1/2/4, AVI, RM, WMV, DAT, JPEG, BMP, PPT, Word, EXCEL, TXT, MP3, RMVB, FLASH, Marquee text |
| Playback Function | Playlist control, program playback sequence, circulating playback |
| Certification | CE, ROHS, FCC, ISO |
| Warranty | 1 Year |
| Other Features | Anti-theft design, remote control, auto On/Off sensor, fan cooling/air conditioning system |
