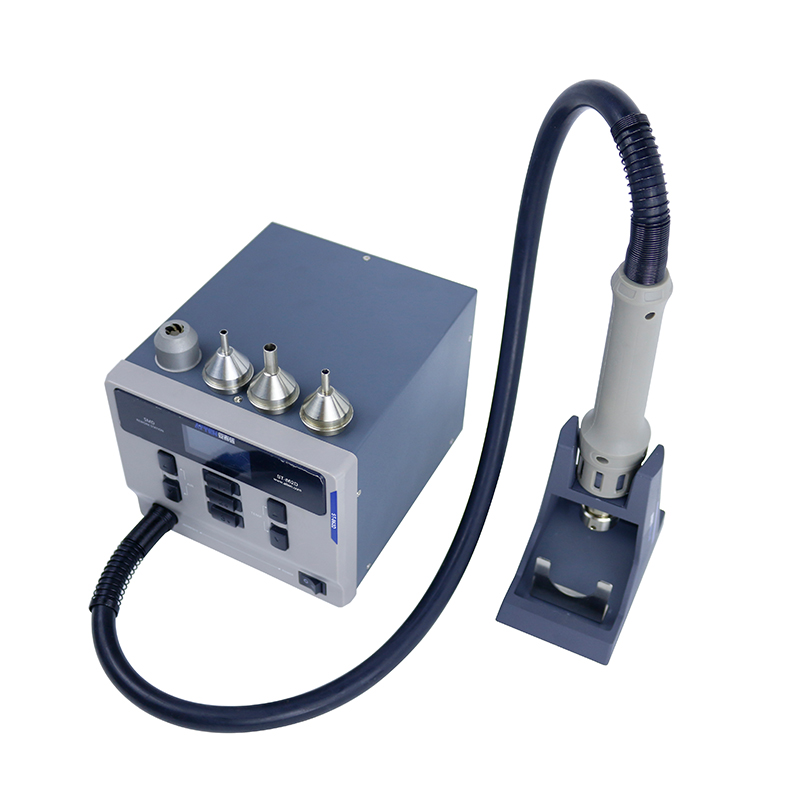

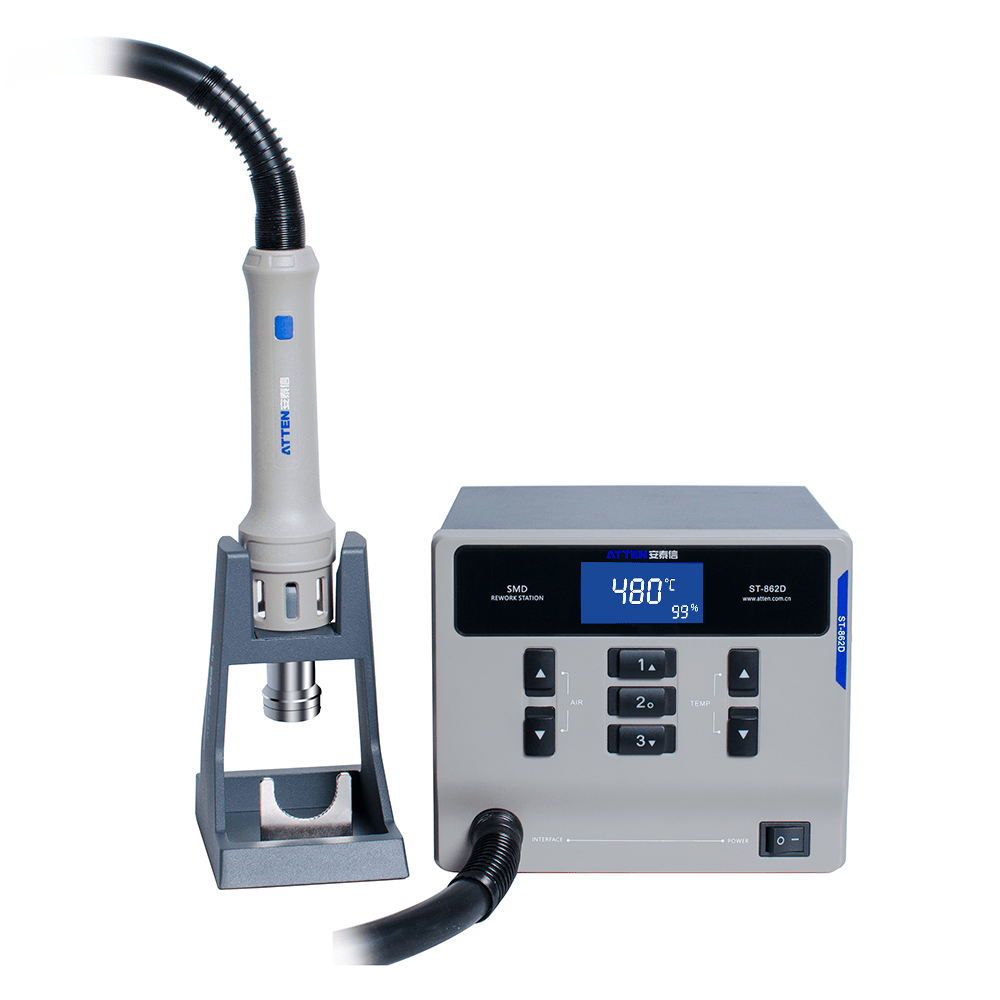

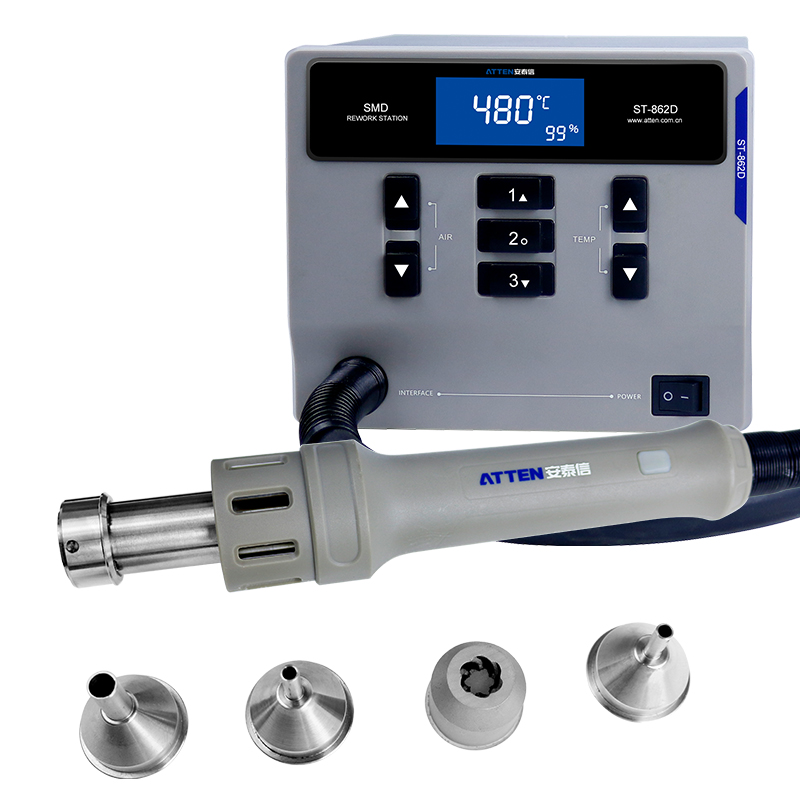

ATTEN ST862D Hot Air Rework Station
The ATTEN ST862D is an advanced 1000W hot air rework station built for professional electronics repair, particularly for mobile phone motherboards and other delicate PCB chip soldering tasks.
It features a wide temperature range (100°C to 480°C) with three preset temperature channels for quick access to common settings, enhancing workflow efficiency.
The station provides strong, adjustable airflow (20-130L/min) from its brushless fan, ensuring precise heat distribution and preventing damage to surrounding components.
Key functionalities include automatic sleep mode, temperature lock, timed work, and software calibration for consistent temperature control.
With a pluggable heater for easy maintenance and a digital LCD screen for real-time operation display, the ST862D is a reliable and versatile tool for demanding rework applications.
Specifications
| Attribute | Value |
|---|---|
| Model | ST862D |
| Power | 1000W |
| Input Voltage | 220V/50HZ or 110V/60HZ (selectable) |
| Temperature Range | 100°C ~ 480°C |
| Max Air Flow | 120L/min – 130L/min (adjustable) |
| Fan Type | Brushless Whirlwind Fan |
| Display | LCD Digital Display |
| Preset Channels | 3 (for temperature and airflow settings) |
| Heater | Pluggable Heating Chip |
| Functions | Automatic Sleep, Temperature Lock, Timed Work, Software Calibration, Temperature Compensation |
| Air Flow Type | Straight wind and spiral wind convertible |
| Applications | Mobile phone repair, PCB chip soldering/desoldering, machinery repair shops, general electronics rework |

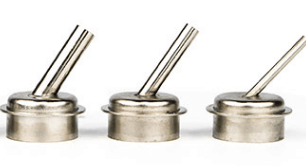

| Nozzles Included | 4 (common: 7mm, 9mm, 13mm, 21.5mm outer diameters) |
| Warranty | 1 Year (common) |
