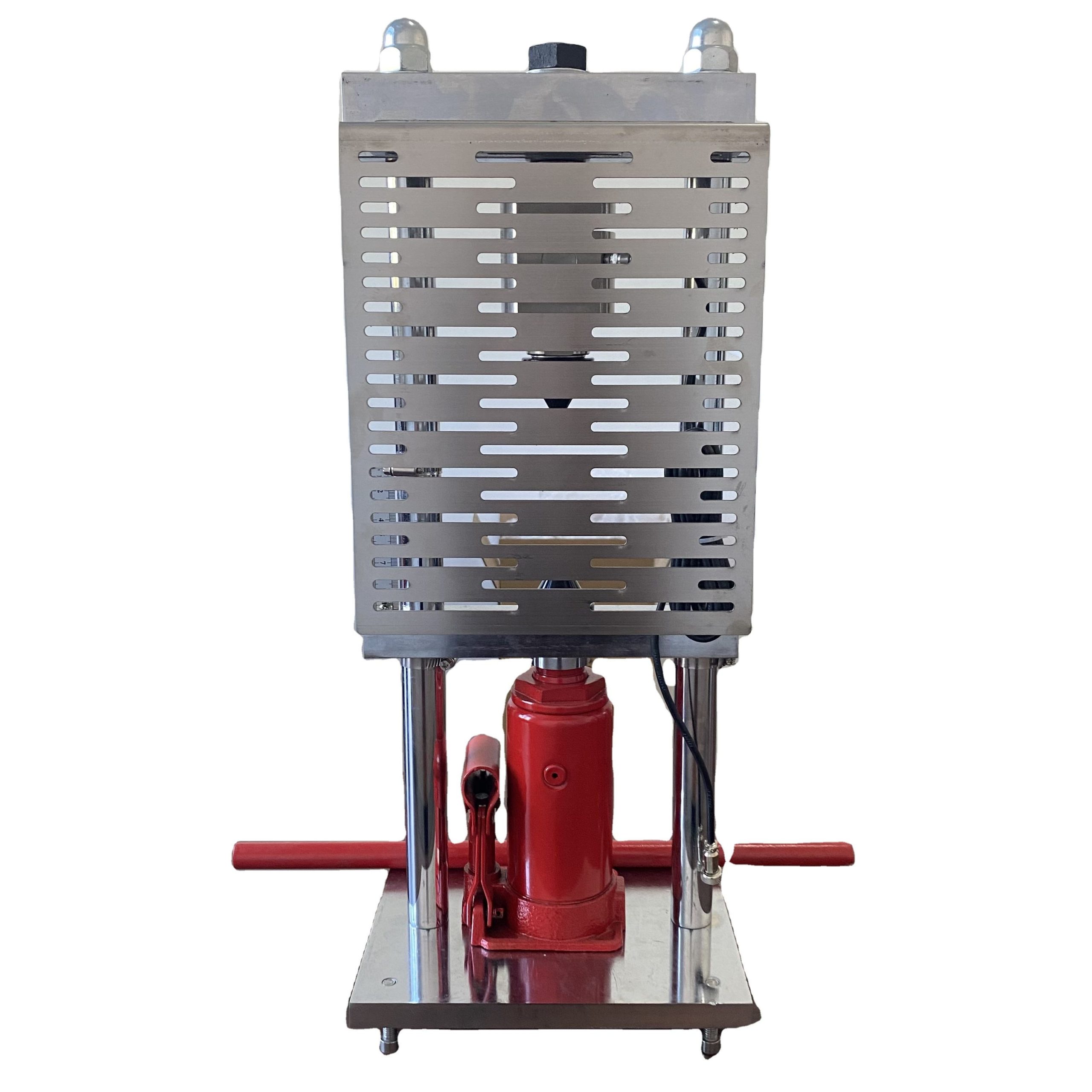

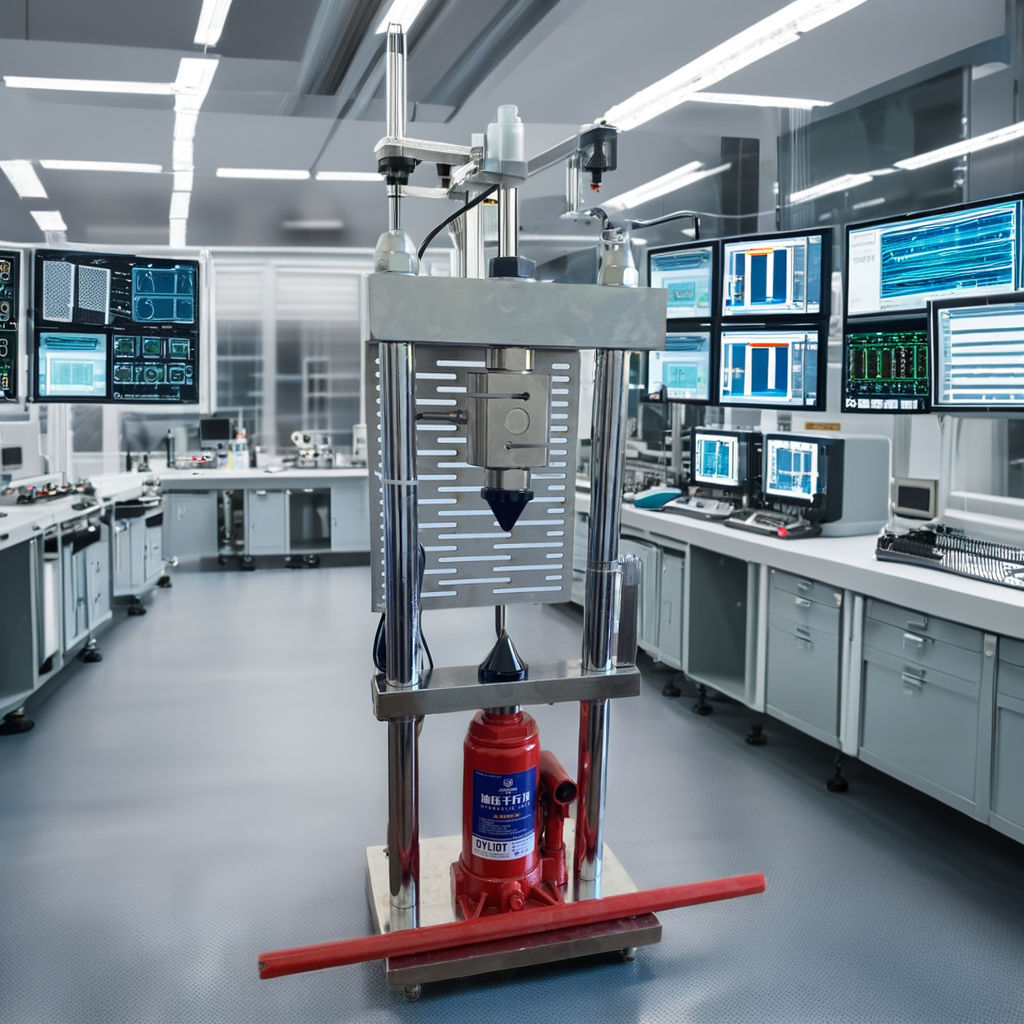

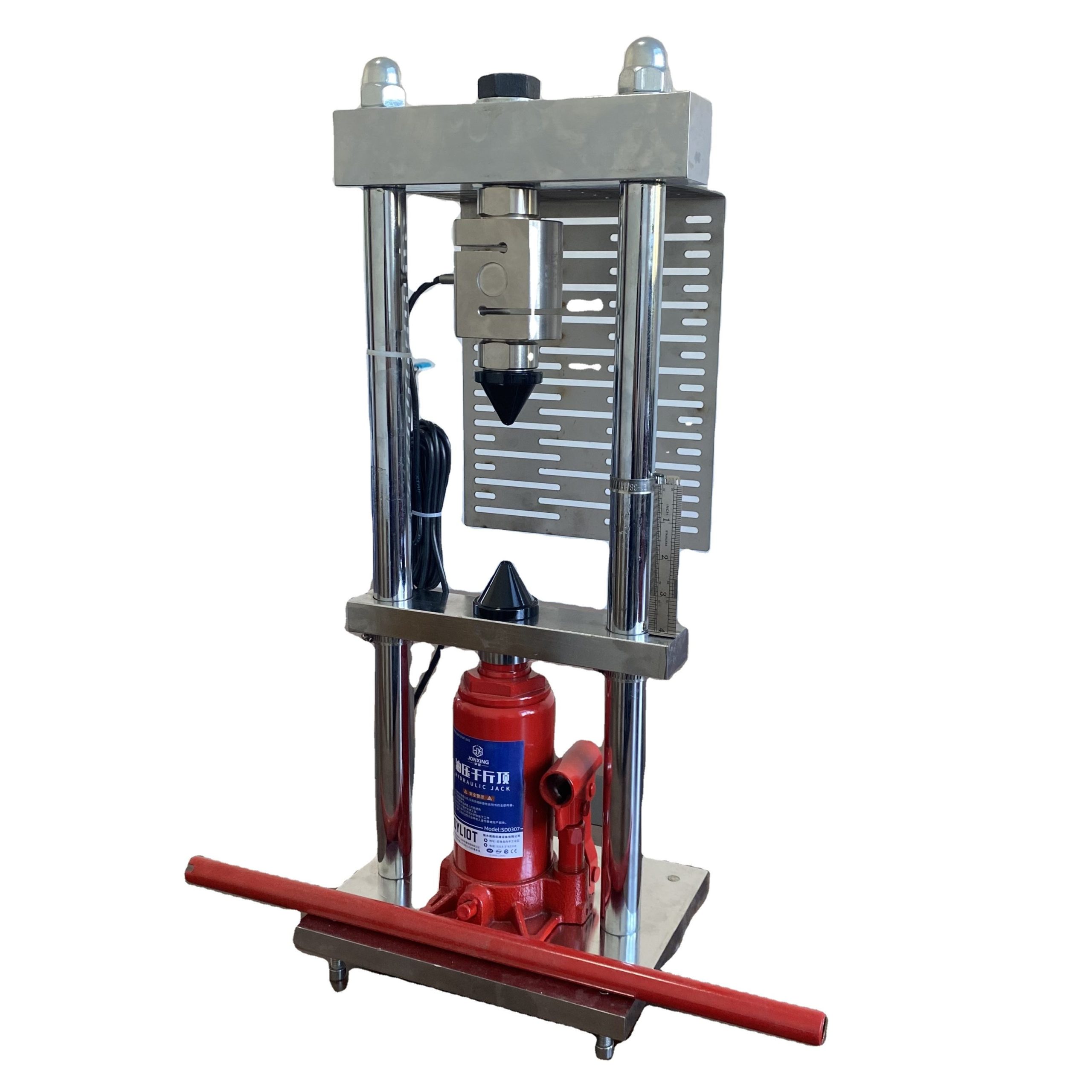

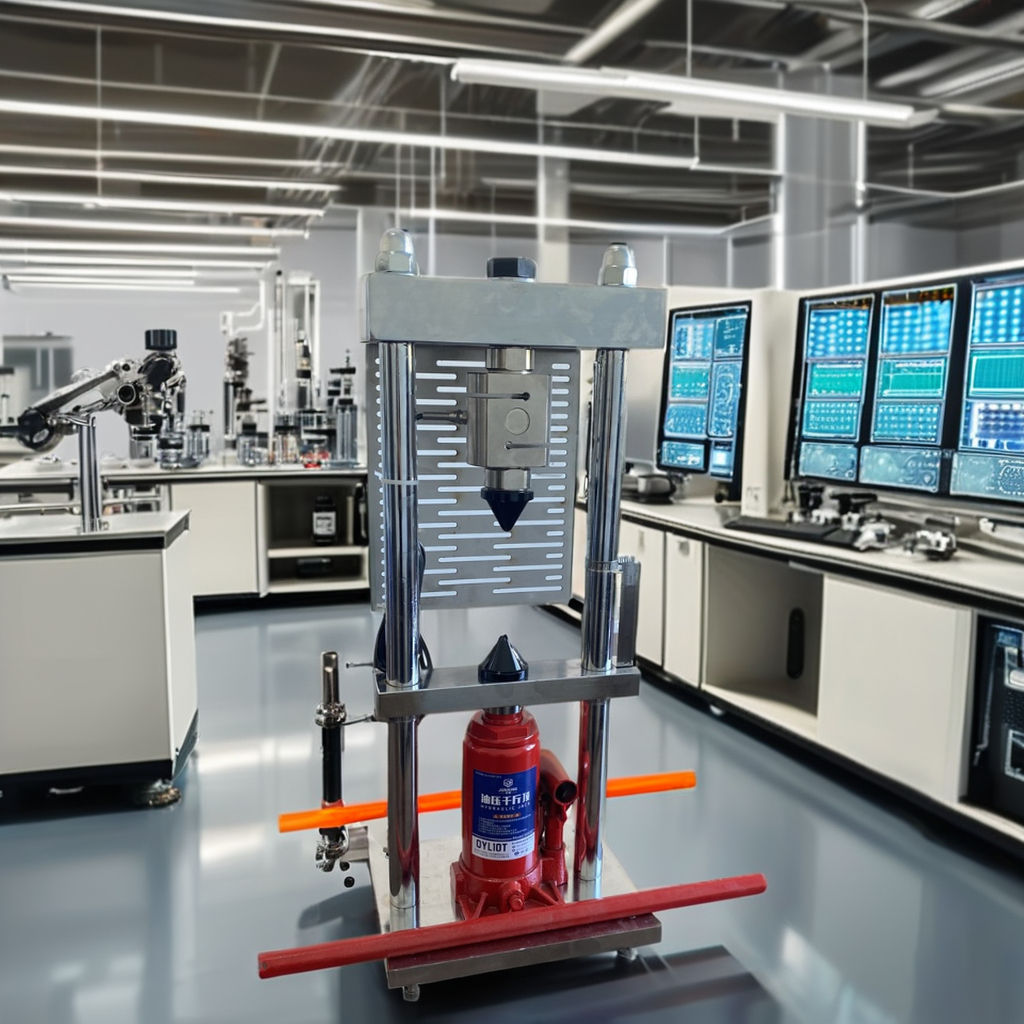

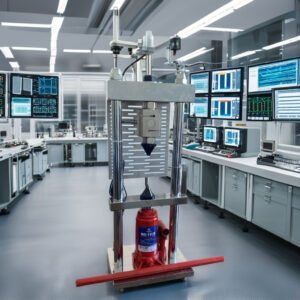

Rock Point Load Tester
R16 734,10
Rock point load tester is a kind of testing instrument suitable for construction site. The point load test has low requirements for the preparation of rock samples, which can be either core samples for engineering exploration or irregular samples with slight trimming. The sample preparation does not need special machining. Compared with the conventional test, it has the characteristics of fast test speed, short test cycle, simple method and low cost. It can be widely used in the field test of construction projects such as geology, mining, hydropower, railway and transportation.
Rock Point Load Tester
Overview
The Rock Point Load Tester is a precision testing device designed for engineers, geotechnical specialists, and quality control professionals. Engineered for accurate measurement of rock and construction materials, it delivers reliable results with minimal effort. Its durable construction, user-friendly design, and customizable options make it ideal for industrial and laboratory environments.
Specifications
- Model Number: HBZB
- Material: Stainless Steel
- Power: 0.001KN
- Warranty: 1 Year
- Customized Support: OEM
- Place of Origin: Hebei, China
- Jack Pressure: 60/100 MPa
- Piston Diameter: 36 mm
- Max Piston Stroke: 140 mm
- Max Sample Width: 90 mm
- Sample Height: 120 mm
- Rated Load Capacity of Sensor: 100 kN
- Package Dimensions: 40 × 40 × 90 cm
- Gross Weight: 40 kg
Key Features
- High Accuracy and Precision: Digital display and a sensor with a 100 kN rated load capacity ensure reliable, precise measurements.
- Durable Construction: Crafted from high-quality stainless steel for long-term durability and corrosion resistance.
- User-Friendly Operation: Jack pressure of 60/100 MPa and piston diameter of 36 mm allow efficient and accessible testing.
- Customizable Design: OEM support available for tailored configurations to meet specific testing requirements.
- Warranty Assurance: Comes with a 1-year warranty for reliable support and peace of mind.
Applications
- Industrial Testing: Measures the strength and load capacity of rock and construction materials.
- Geotechnical Research: Supports soil and rock analysis for engineering and construction projects.
- Material Analysis: Evaluates rock properties in laboratories, ensuring accuracy for professional use.
- Quality Control: Ensures compliance with safety and performance standards in material manufacturing.
The Rock Point Load Tester combines durability, precision, and ease of use for accurate testing of rocks and materials. Its robust stainless steel build, customizable options, and reliable digital measurement make it an essential tool for professionals in industrial, geotechnical, and laboratory settings.
