Glass Printing Machine Bottle 6color Cnc Automatic Cosmetics Jar

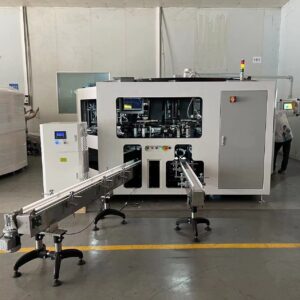

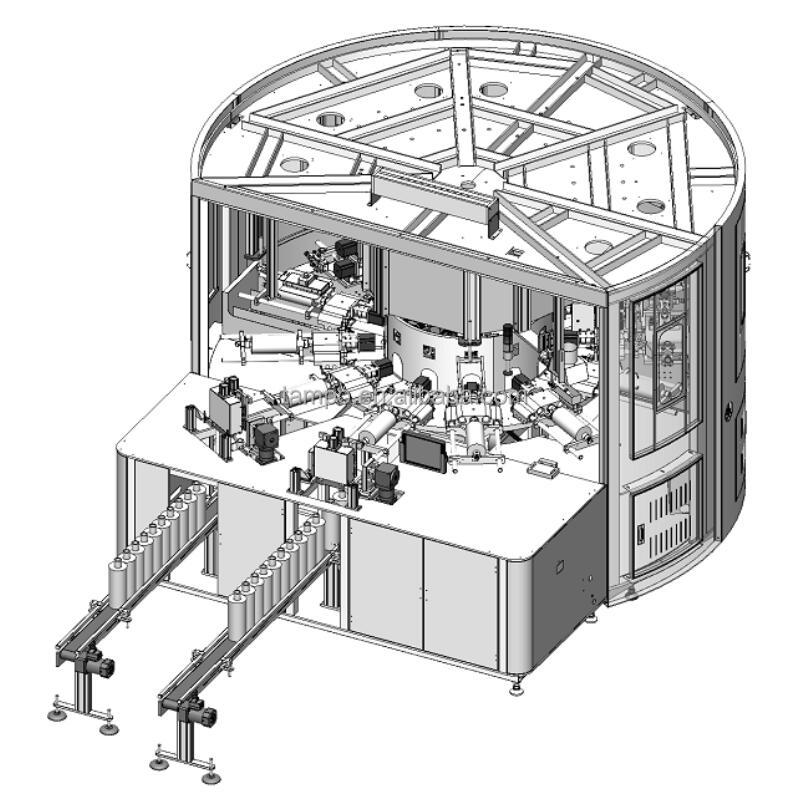

Glass Bottle 6-Color CNC Automatic Printing Machine (Servo System)

Briefing:
The product is a Glass Bottle 6-Color CNC Full Automatic Printing Machine designed for high-precision printing on glass bottles, cosmetic jars, lipstick tubes, and skincare cream containers. It ensures high efficiency, stable performance, and accurate multi-color printing for industrial use.

Key Features:
Material: High-quality industrial-grade construction for durability
Design: Ergonomic and user-friendly operation system
Efficiency: High-speed automatic printing with consistent accuracy
Capacity: Up to 2700 pieces per hour
Safety: Built-in operator safety protection systems
Automation: Fully automatic CNC servo-controlled system
Printing Capability: 6-color multi-side printing support
Positioning System: High-precision CCD scanning
Control System: BECKHOFF industrial control system
Operation: Touch screen parameter control with fast changeover

Specifications:
Model: LC-CNC616
Max Printing Speed: 2700 pcs/hour
Max Product Size: Diameter 100mm × Height 310mm
Power Requirement: AC 380V, 3 Phase, 50Hz / 60Hz
Rated Power: 20 kW / 45 kW (depending on configuration)
Air Pressure: 5–6 Bar
Machine Dimensions: 5876 × 2362 × 2362 mm
Weight: 7500 kg
Printing Accuracy: ±0.02 mm
Scraper Stroke: 355 mm
Adjustable Stroke: 50 mm
Control System: BECKHOFF PLC system
Core Components: Servo motor, PLC, CCD system
Condition: New
Certification: CE standard

Functions:
Auto loading and unloading system
Dust cleaning system
Flame treatment before printing
UV curing after printing
Servo-controlled multi-side printing
Quick product changeover (approx. 20 minutes per color setup)
High-speed CCD registration system

Applications:
Cosmetic Industry: Lipstick tubes, jars, skincare containers
Beverage Industry: Glass bottles printing
Pharmaceutical Industry: Medicine bottles and containers
Advertising Industry: Promotional packaging and branded products

Summary:
This 6-color CNC automatic glass bottle printing machine is a high-precision industrial solution designed for multi-color printing on cosmetic, beverage, and pharmaceutical containers. With servo automation, CCD positioning, UV curing, and fast changeover capability, it delivers high-speed, accurate, and consistent printing performance.
