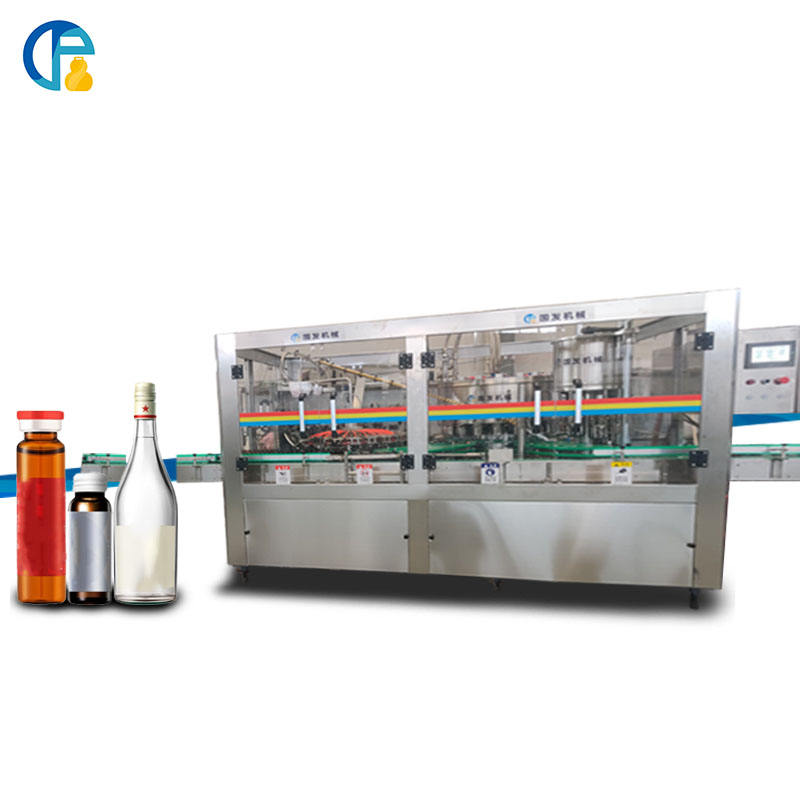

Essential Oil Perfume Oral Syrup Small Bottle Glass Liquid Filling Capping Machine Line
Key Attributes
Industry-Specific Attributes
| Specification | Details |
|---|---|
| Packaging Type | Bottles, Barrel |
| Packaging Material | Plastic, Glass |
| Voltage | 220V / 380V / Customize |
| Filling Material | Vodka, whiskey, wine, oral liquid, fruit juice, customize |
Other Attributes
| Specification | Details |
|---|---|
| Application | Food, Beverage, Chemical |
| Automatic Grade | Automatic |
| Warranty | 1 Year |
| Filling Accuracy | ±5ml |
| Driven Type | Electric |
| Dimension (L × W × H) | 3800 × 1500 × 2200mm / 4200 × 1500 × 2200mm |
| Key Selling Points | High-accuracy |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Pump, PLC, Gear, Bearing, Gearbox, Engine |
| Product Name | Oral Liquid Filling Machine |
| Bottle Type | Glass Bottle, Plastic Bottle, Round Bottle, Square Bottle |
| Usage | High viscous Liquid Products |
| Control | PLC + Touch Screen |
| Filling Speed | 500~8000BPH |
| Material | SUS304 / 316 |
Product Description
This machine is specially used for filling low-viscosity liquids, such as vodka, whiskey, wine, oral liquid, fruit juice, etc.
This machine can be customized according to customer needs, as well as the customer’s bottle size, bottle capacity, bottle material, hourly output, cap material and size and other information.
The output of the machine can reach 1000-10000 bottles per hour, widely used in chemical, medical, food, wine and other industries.

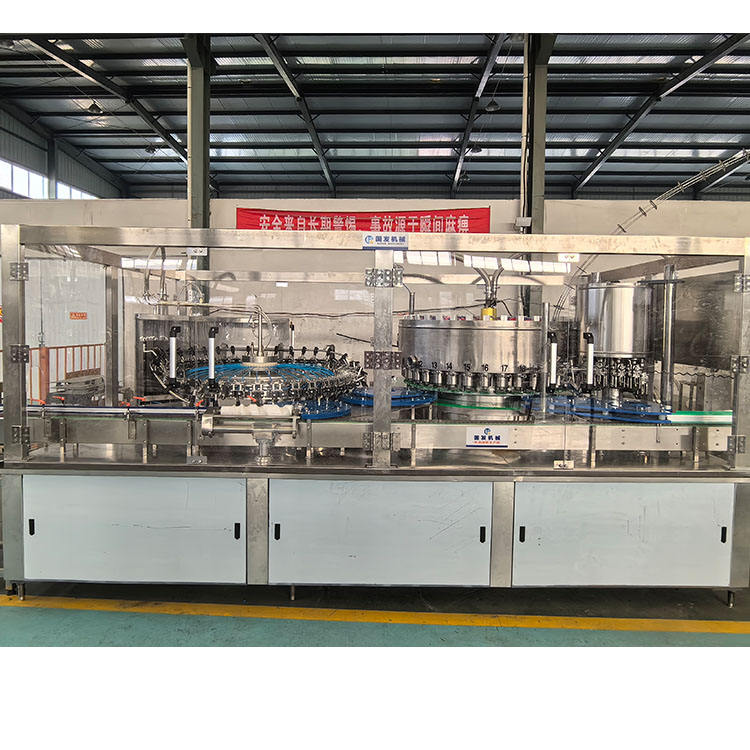

Bottle Washing Filling and Capping 3 in 1 Machine
| Specification | GFFDP18-12-4 | GFFDP24-18-6 |
|---|---|---|
| Number of Bottle Washing Heads | 18 | 24 |
| Number of Filling Nozzles | 12 | 18 |
| Number of Capping Heads | 4 | 6 |
| Production Capacity | 3000-4000 BPH (50ml) | 5000-6000 BPH (50ml) |
| Total Power | 3 kw | 5.5 kw |
| Weight | 2500KG | 3500KG |
| Dimensions | 3800 × 1500 × 2200mm | 4200 × 1500 × 2200mm |
Additional Information
- Bottle Height: 50-320mm (customized)
- Models can be customized according to output requirements.
- Please contact us and provide your production needs for customized solutions.
